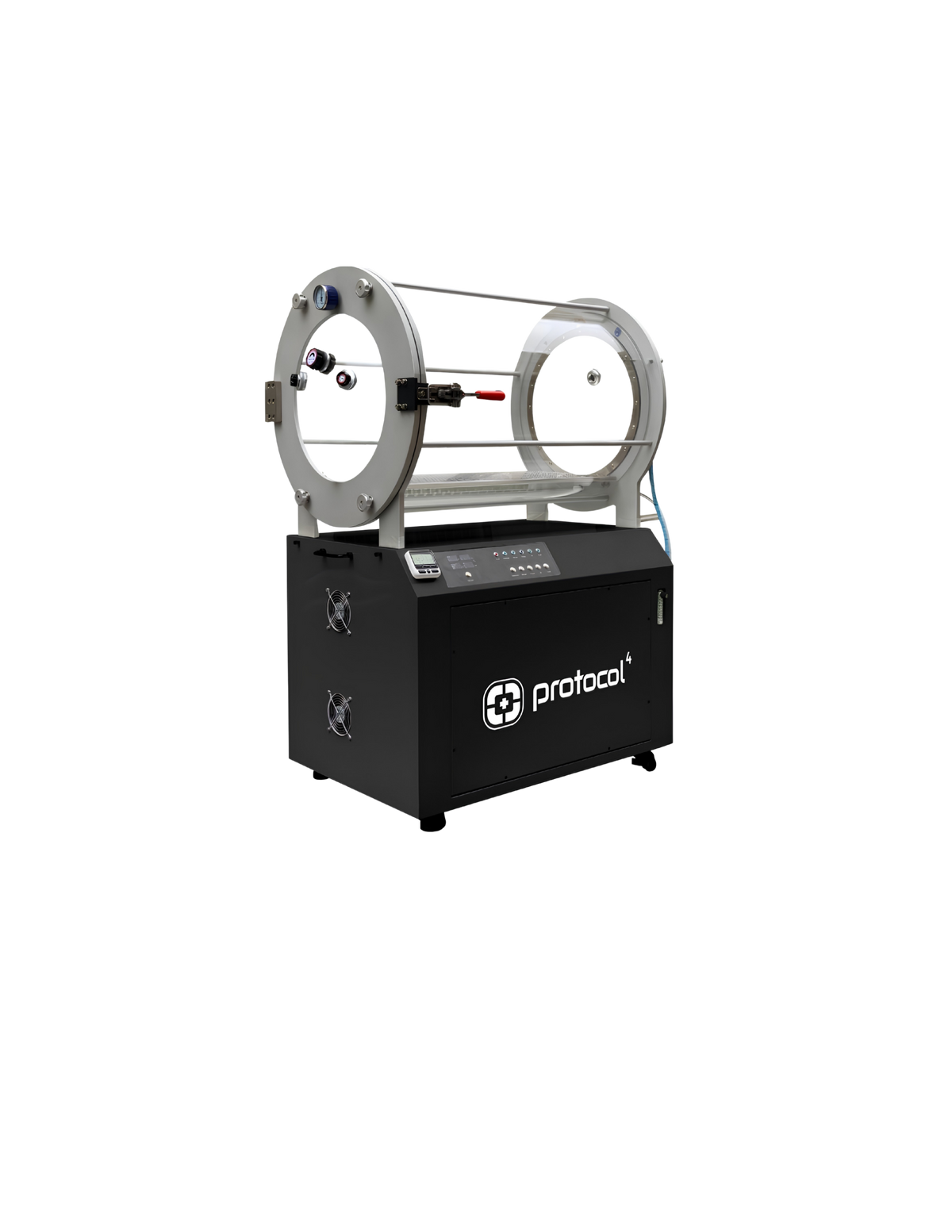

Small Pet Hyperbaric

Chamber Specifications

Model: P580

Chamber Type: Hard-shell hyperbaric chamber for small animals

Operating Pressure: 1.3 / 1.4 ATA

Approx. Pressure: 4 / 5.8 psi

Chamber Construction: Aluminum + acrylic

Cabin Diameter: 23.6 in

Chamber Dimensions: 49.2 × 28.7 × 33.9 in

Chamber Net Weight: 143.3 lb

System Machine Specifications

System Machine Dimensions: 30.3 × 18.1 × 28.3 in

System Machine Weight: 154.3 lb

Airflow: 72 L/min

Oxygen Flow: 1–5 L/min, adjustable

Air Filtration: Dual-filter system

Input Voltage: 110/220 V ±10%

System Configuration: All-in-one compressor, oxygen concentrator + cooler

Specifications are based on the current Protocol⁴ P580 specification sheet.

Purpose-Built Small-Animal Chamber

The P580 uses a dedicated animal-sized cabin with a 23.6-inch diameter, eliminating the need to adapt a human-sized hyperbaric chamber for a smaller occupant.

Selectable 1.3 / 1.4 ATA Operation

The hard-shell system provides two selectable mild-pressure settings:

1.3 ATA: approximately 4 psi

1.4 ATA: approximately 5.8 psi

Aluminum + Acrylic Hard-Shell Construction

The P580 combines an aluminum structure with a transparent acrylic enclosure. The cylindrical viewing area provides clear visibility into the chamber, allowing the animal to remain readily observable during operation.

Integrated System Machine

The accompanying all-in-one equipment platform integrates the air compressor, oxygen concentrator, and cooling system rather than requiring these primary support systems to be assembled separately.

Air & Oxygen System

The P580 provides 72 L/min airflow with adjustable 1–5 L/min oxygen flow and incorporates a dual-filter air-filtration system.

Dedicated Equipment Footprint

The P580 should be treated as dedicated wellness equipment rather than a portable pet accessory. The chamber weighs approximately 143.3 lb, while the accompanying system machine weighs approximately 154.3 lb.

Installation Planning

The P580 consists of both the chamber and accompanying system machine and should be planned as dedicated or semi-permanent equipment.

Before ordering, consider the dimensions and placement requirements of both components:

Chamber: 49.2 × 28.7 × 33.9 in; approximately 143.3 lb

System Machine: 30.3 × 18.1 × 28.3 in; approximately 154.3 lb

Confirm suitable room dimensions, access clearances, electrical requirements, ventilation requirements, and final placement before delivery.

For current shipping, delivery, installation, and availability information, contact Aurum Apex at 888.704.4075.

Manufacturer Warranty

Warranty coverage for the Protocol⁴ Small Pet Hyperbaric P580 is subject to the manufacturer's current terms and the final order configuration.

Contact Aurum Apex at 888.704.4075 for current warranty information before ordering.

Routine Care

Keep the chamber and system machine clean, dry, and maintained in accordance with current Protocol⁴ instructions.

Regularly inspect accessible chamber surfaces, seals, fittings, air lines, filters, controls, and system connections for visible wear or changes in normal operation.

Maintain and replace filtration and other service components according to the manufacturer's current recommendations.

Always allow the chamber to return fully to ambient pressure before opening it.

Important Animal Safety Information

Hyperbaric equipment should be operated according to current Protocol⁴ instructions and with appropriate veterinary guidance.

Animals should remain appropriately supervised throughout use.

Suitability should be discussed with a veterinarian before use with an animal that has an illness, injury, respiratory or cardiovascular condition, ear or sinus concern, pregnancy, recent procedure, medication use, or another health condition.

Pressure changes require particular care because an animal cannot communicate ear pressure, discomfort, breathing difficulty, or other symptoms as precisely as a human user.

The P580 is presented by Aurum Apex as animal wellness equipment and should not replace veterinary diagnosis, treatment, or emergency care.
