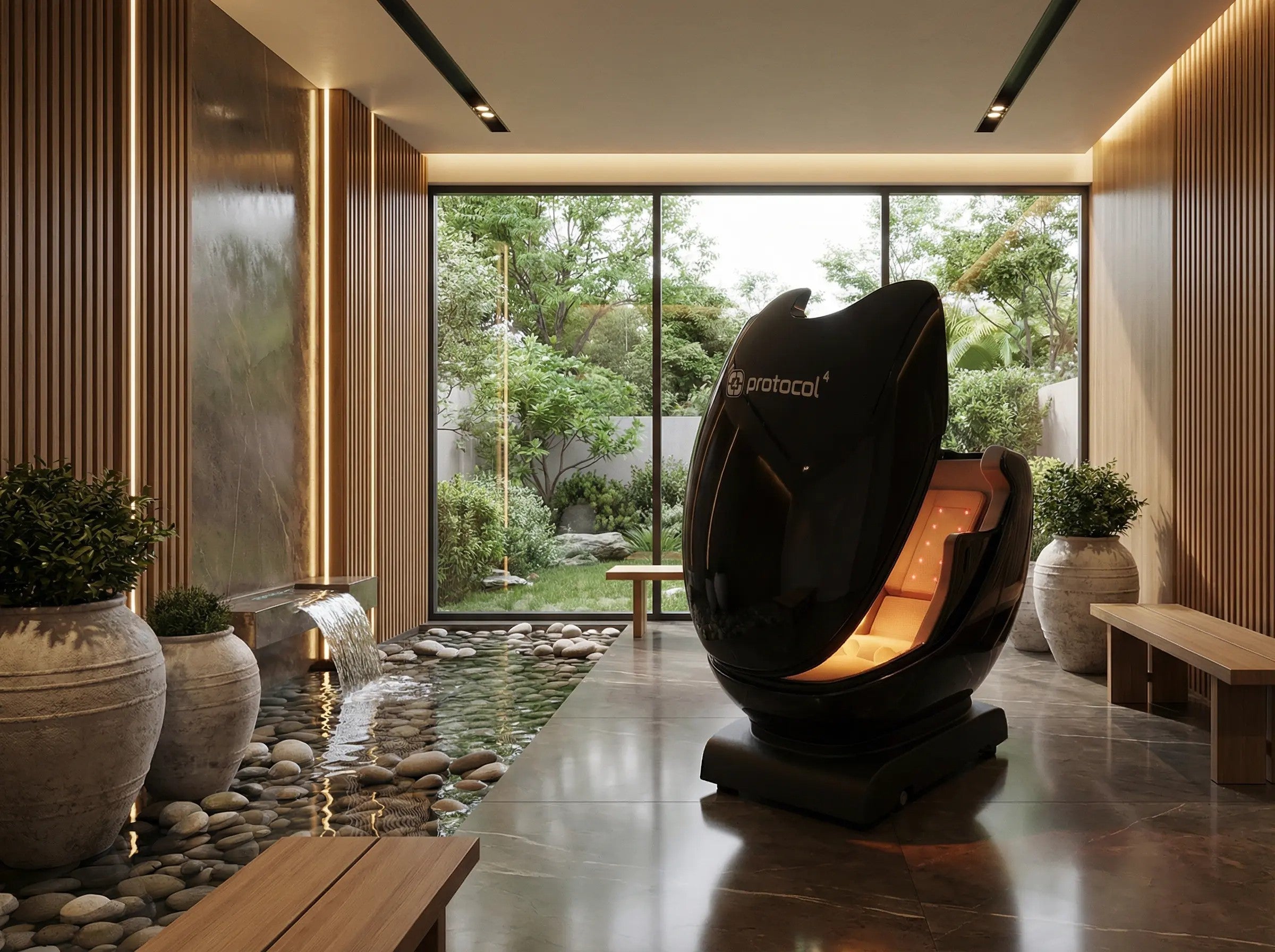

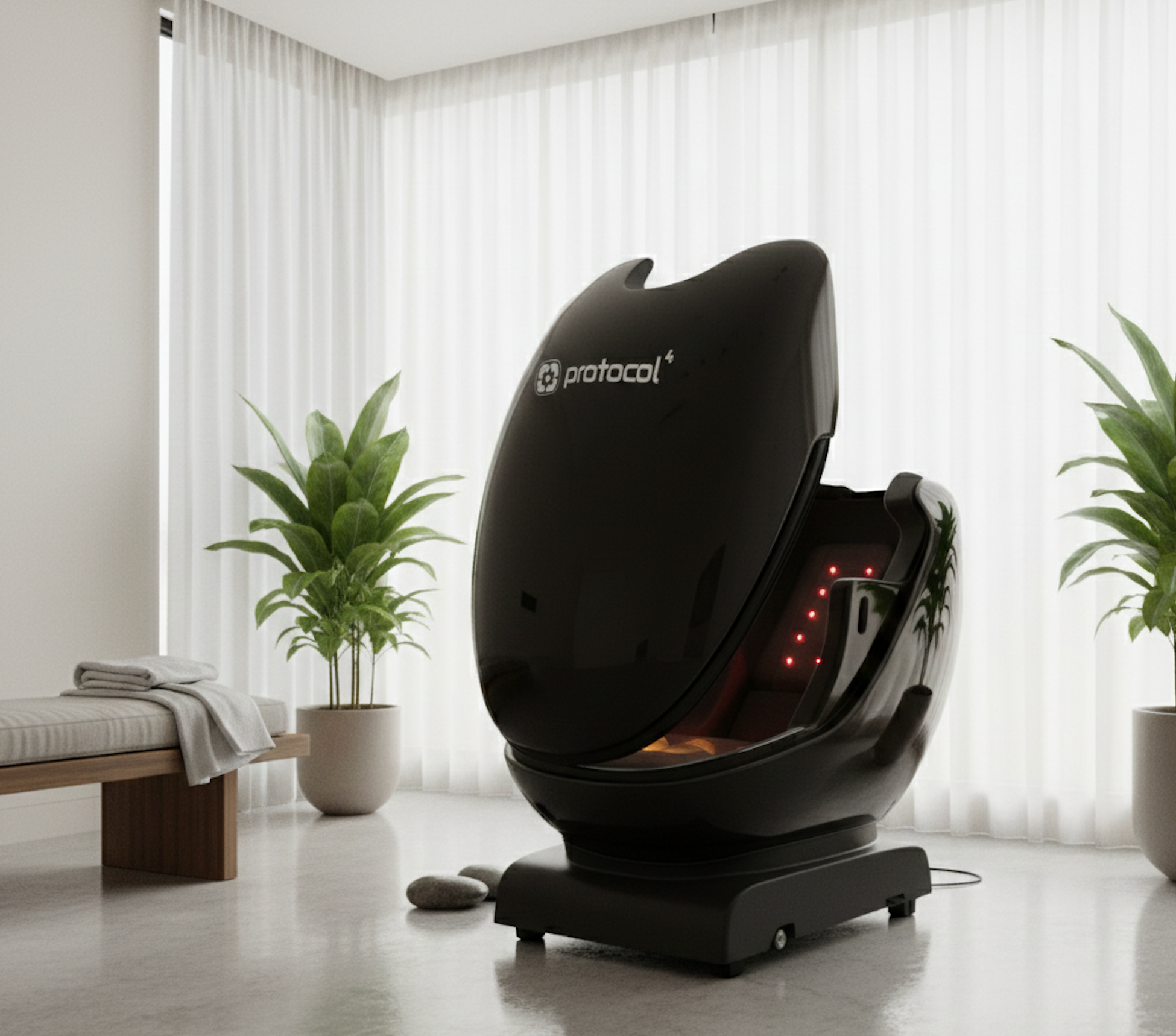

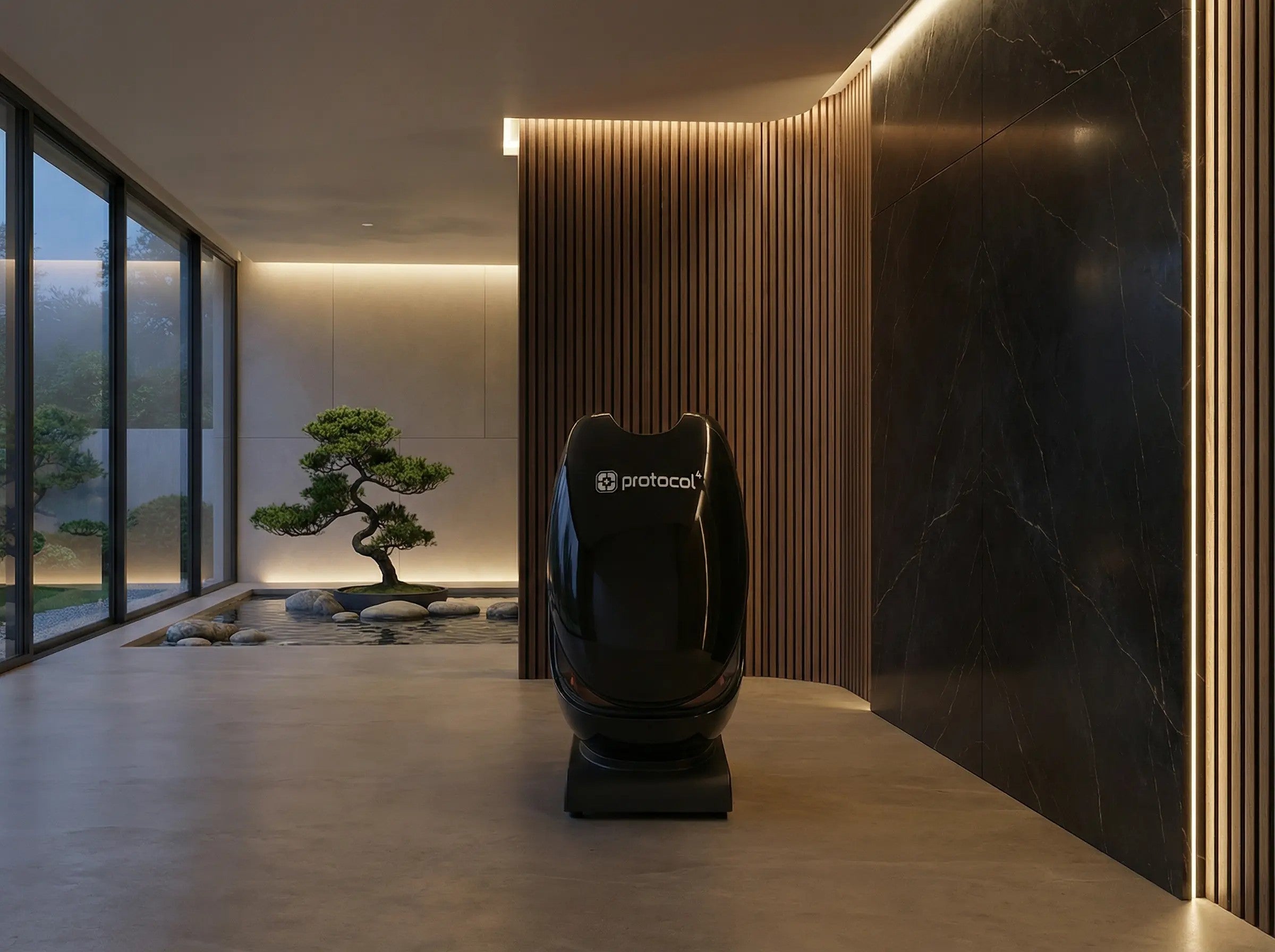

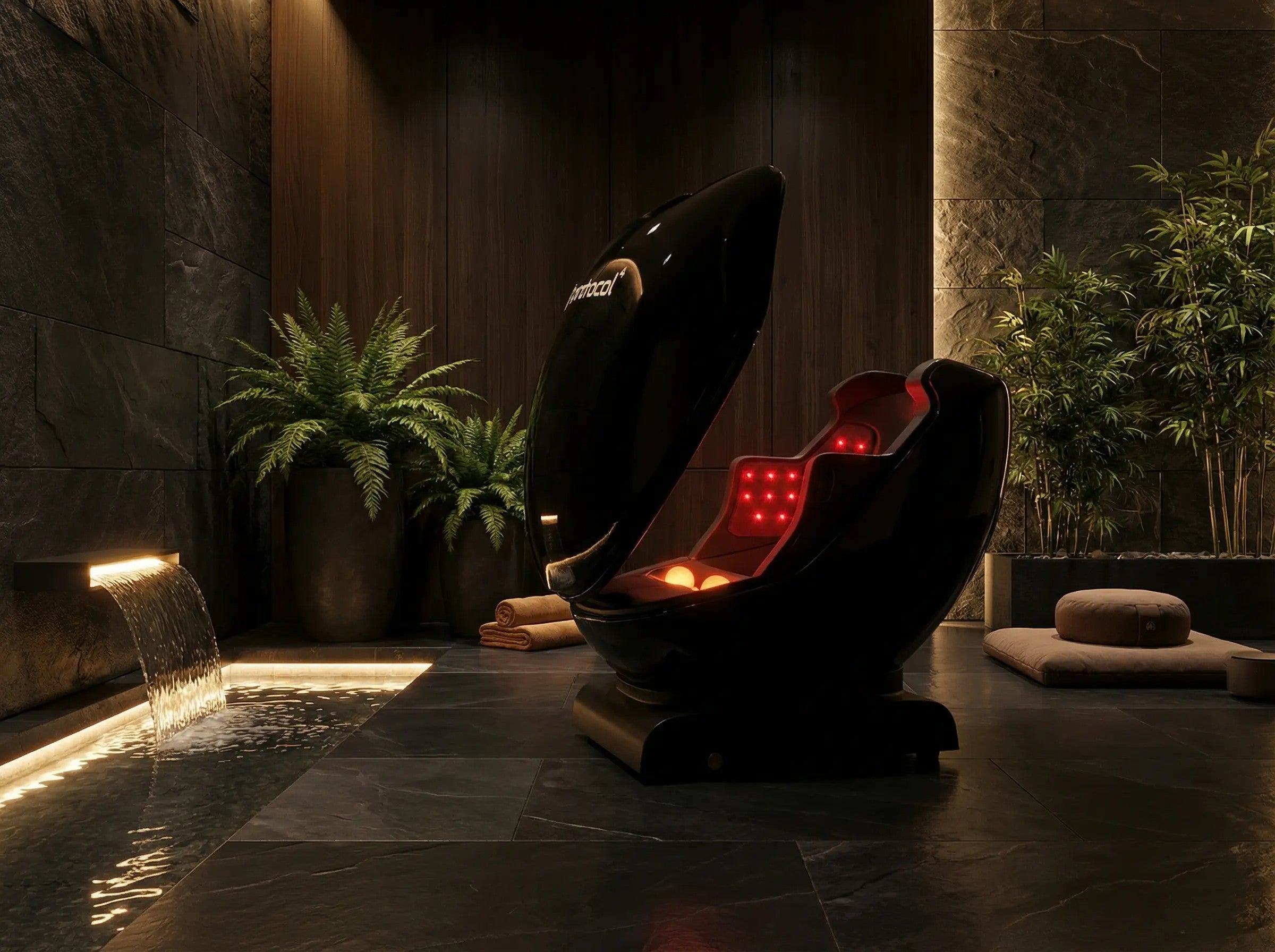

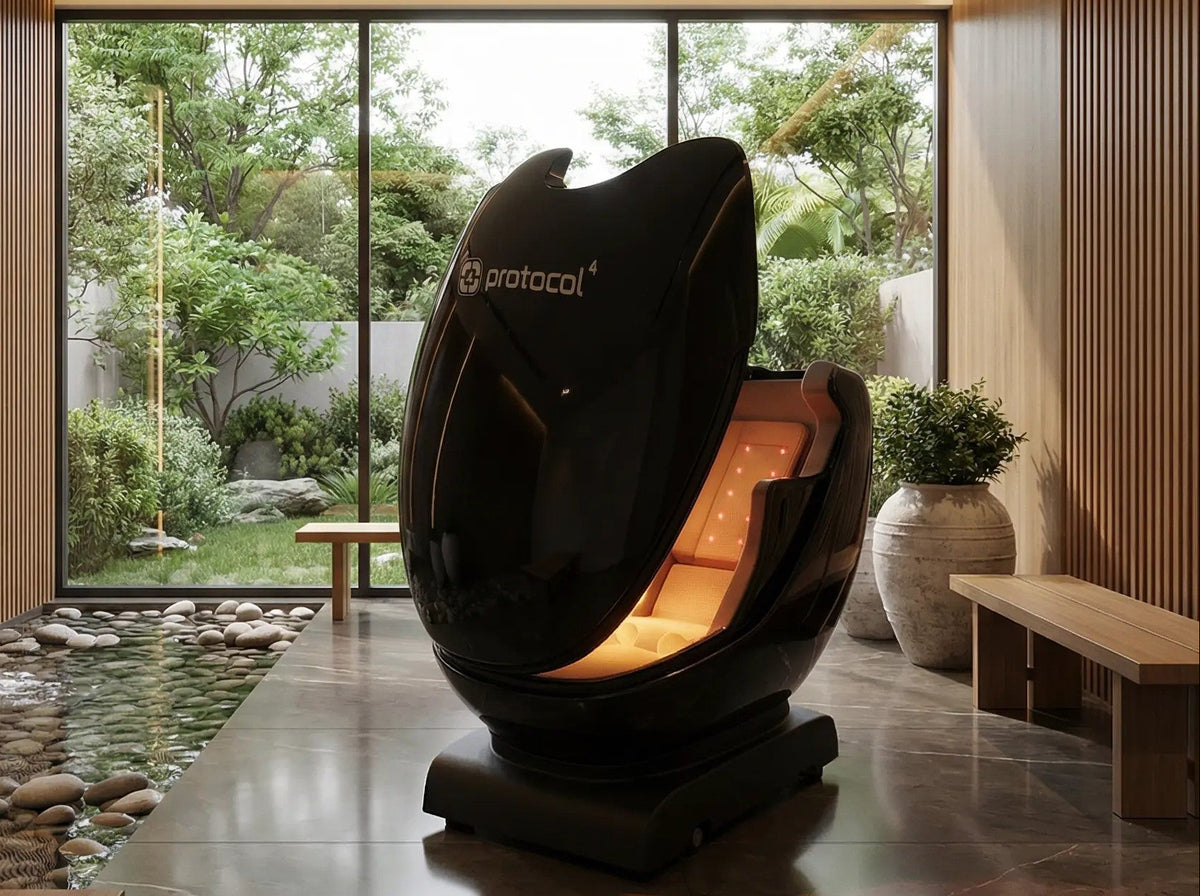

The Cocoon

Technical Specifications

Brand: Protocol⁴

Model: P200 — The Cocoon

Product Type: Enclosed multi-modality wellness system

Thermal Technology: Dual-zone far-infrared (FIR) heating

Photon Light System: Integrated full-body photon light panels

Mattress Red-Light Irradiance: 33–35 mW/cm²

Mattress PEMF Intensity: 8–30 Gauss

Rear Rotating Magnetic Unit: Large unit, up to 8,000 Gauss

Controls: Digital internal control interface

Session Adjustments: Adjustable time and temperature

Cooling: Internal active cooling fans

Airflow: Large-capacity air circulation system

Audio: Integrated Bluetooth speakers

Power: Approximately 1,500 W

Voltage: 220 V

Dimensions (L × W × H): 63 × 30 × 51 in

Installed Footprint: Approximately 13 sq. ft.

Net Weight: Approximately 220 lb

Maximum User Weight: Approximately 400 lb

Construction: Reinforced fiberglass shell with acrylic interior

Ozone System: Built-in sanitation cycle for non-occupant use only

Manufacturer Warranty: 1 year

Configuration Information

Specifications reflect the manufacturer's supplied documentation for the P200 Cocoon.

Individual photon-light wavelengths, LED count, and PEMF operating frequencies are not specified in the available documentation.

The listed magnetic-field intensities are manufacturer equipment specifications and do not establish the magnetic-field exposure experienced by an occupant.

Electrical connection and site-specific installation requirements should be confirmed before ordering.

Integrated Wellness Technologies

Dual-Zone Far-Infrared Heating

The Cocoon incorporates a dual-zone far-infrared heating system within its enclosed design.

The digital control interface provides adjustable temperature settings for personalized thermal sessions.

Full-Body Photon Light System

Integrated full-body photon light panels provide light-based functionality within the enclosure.

The manufacturer's specification sheet identifies mattress red-light irradiance of approximately 33–35 mW/cm².

Individual wavelengths and total LED count are not specified in the available manufacturer documentation.

Integrated PEMF Technology

The Cocoon includes a pulsed electromagnetic field system as part of its multi-modality configuration.

The mattress-integrated PEMF system has a manufacturer-listed magnetic field intensity of 8–30 Gauss.

Rear Rotating Magnetic Unit

A separate large rear rotating magnetic unit is listed with a magnetic field intensity of up to 8,000 Gauss.

The manufacturer does not specify PEMF operating frequencies or occupant exposure levels in the supplied documentation.

Comfort & Control

Digital Internal Controls

An integrated digital interface allows users to adjust session time and temperature.

Active Cooling

Internal cooling fans provide additional comfort during operation.

Air Circulation

A large-capacity airflow system supports air circulation throughout the enclosure.

Bluetooth Audio

Integrated Bluetooth speakers allow audio playback from compatible devices.

Construction & Design

Reinforced Fiberglass Shell

The exterior incorporates reinforced fiberglass construction.

Acrylic Interior

The interior features acrylic surfaces within the enclosed wellness system.

Compact Footprint

The Cocoon occupies approximately 13 square feet of floor space, making it suitable for planned residential and professional wellness installations.

Additional System Features

Ozone Sanitation Cycle

The Cocoon includes a built-in ozone sanitation cycle intended exclusively for use when the unit is unoccupied.

The ozone cycle must never be operated while a person is inside the Cocoon.

Manufacturing & Delivery

The Cocoon is a large-format wellness system that may require specialized freight handling and delivery coordination.

Processing & Shipping Timeframes

Standard shipping may take approximately 5–60 business days, depending on order requirements, inventory availability, and delivery arrangements.

Large equipment requiring specialized transportation or white-glove service may take up to 80 business days.

Shipping estimates begin once payment has been received and applicable order details are confirmed.

Delivery Coordination

Depending on the shipment and available service, delivery arrangements may include scheduled appointments, specialized freight handling, and coordination of equipment placement.

White-glove delivery and installation services should be confirmed before purchase.

Inspection Upon Delivery

Inspect the equipment and packaging immediately upon arrival.

Report visible shipping damage or suspected defects to Aurum Apex within 48 hours of delivery, including photographs or videos and your order information.

Electrical Requirements

The manufacturer specifies:

Voltage: 220 V

Power Consumption: Approximately 1,500 W

The supplied specification sheet does not identify the required circuit amperage, receptacle configuration, or other site-specific electrical requirements.

A qualified electrician should verify the installation requirements before the unit is connected.

Dimensions & Placement

Dimensions: 63 × 30 × 51 in

Installed Footprint: Approximately 13 sq. ft.

Net Weight: Approximately 220 lb

The installation area should provide suitable floor support, electrical access, ventilation, and sufficient clearance for safe operation and maintenance.

Installation Assistance

For questions regarding delivery arrangements, equipment placement, or electrical preparation, contact Aurum Apex at 888-704-4075.

Returns & Refunds

Eligible Returns

Eligible products may be returned within 30 days of purchase, provided they meet the conditions outlined below.

Products must be sealed, unopened, unused, and in their original packaging.

Proof of purchase is required.

Return Authorization & Shipping

All returns must be reviewed and approved before merchandise is shipped back.

To request a return, contact Aurum Apex with your order number and reason for the return.

Customers are responsible for return shipping costs unless otherwise required by applicable law.

We recommend using a trackable shipping method. Aurum Apex is not responsible for return shipments lost or damaged in transit.

Refund Processing

Once an eligible return has been received, inspected, and approved, a refund will be issued to the original payment method.

Manufacturer Warranty

Eligible devices and machines are covered by a one-year limited manufacturer warranty beginning on the date of purchase.

The warranty covers defects in materials or workmanship under normal, intended use.

Damage resulting from misuse, accidents, neglect, or unauthorized modifications is excluded.

Warranty claims are subject to review, and eligible products may be repaired or replaced in accordance with the applicable warranty terms.

Customer Support

For return requests, delivery concerns, or assistance with your order, please contact:

Aurum Apex
support@aurumapex.com
888-704-4075

These product-specific terms supplement the Aurum Apex Return & Refund Policy and do not limit rights provided under applicable law.

One-Year Limited Manufacturer Warranty

The Cocoon includes a one-year manufacturer warranty, as listed in the product specification sheet.

The complete terms, covered components, exclusions, and service arrangements are governed by the written warranty supplied with the purchased unit.

Warranty Assistance

Aurum Apex provides assistance with manufacturer warranty inquiries and can help coordinate communication regarding service requests.

Warranty Claims

Customers requesting warranty assistance should provide:

• Proof of purchase and order number.
• Product model and serial number, if applicable.
• A description of the issue.
• Photographs or videos when requested.

Warranty eligibility and available remedies are determined according to the applicable manufacturer's written warranty.

Customer Support

For warranty questions or assistance, contact:

Aurum Apex
support@aurumapex.com
888-704-4075

Routine Care & Maintenance

Proper care helps maintain the appearance and functionality of The Cocoon.

After Each Use

Allow the unit to cool before cleaning or performing permitted maintenance.

Wipe accessible interior surfaces with a soft cloth and cleaning products approved by the manufacturer.

Remove moisture from appropriate surfaces and keep the interior free of loose objects.

Fiberglass & Acrylic Surfaces

Use nonabrasive cleaning materials suitable for fiberglass and acrylic finishes.

Avoid harsh chemicals, abrasive pads, and excessive moisture near electronic components.

Airflow & Cooling

Keep ventilation openings unobstructed.

Inspect accessible airflow openings periodically for dust or debris.

Do not operate the system if cooling fans or airflow components appear damaged or malfunctioning.

Electrical Components

Keep liquids away from the digital controller, wiring, and electrical connections.

Inspect visible power connections periodically for damage.

Do not attempt unauthorized repairs or modifications.

Ozone Sanitation Cycle

The built-in ozone sanitation cycle is intended for non-occupant use only.

Never activate the ozone cycle while a person is inside the Cocoon.

Follow the manufacturer's operating instructions for cycle duration, ventilation, and safe reentry before occupying the unit.

Service & Maintenance

Follow the manufacturer's supplied maintenance schedule and operating instructions.

Contact Aurum Apex for assistance with manufacturer service inquiries.

Important Safety Information

The Cocoon combines thermal, photon light, PEMF, and magnetic technologies within an enclosed wellness system.

Always follow the manufacturer's operating instructions and applicable installation requirements.

Thermal Safety

Use temperature and session-duration settings appropriate for personal comfort and the manufacturer's instructions.

Stop using the system if you experience dizziness, overheating, unusual discomfort, or other concerning symptoms.

Ozone Sanitation Safety

The built-in ozone sanitation cycle is intended exclusively for non-occupant use.

Never operate the ozone sanitation cycle while a person is inside the unit.

Follow the manufacturer's instructions regarding ventilation and safe reentry after a sanitation cycle.

PEMF & Magnetic-Field Safety

The Cocoon incorporates mattress PEMF technology and a rear rotating magnetic unit.

Individuals with pacemakers, implanted defibrillators, neurostimulators, or other implanted electronic medical devices should not use the magnetic functions without clearance from an appropriately qualified healthcare professional and the implanted-device manufacturer.

The supplied specification sheet does not establish magnetic-field exposure levels at the occupant's position.

Electrical Safety

The Cocoon requires a 220 V electrical supply.

Have a qualified electrician confirm circuit capacity, receptacle compatibility, grounding, and applicable electrical requirements before installation.

Do not operate the equipment with damaged wiring or electrical components.

Medical & Regulatory Disclosure

The Cocoon is presented as a general wellness system.

No claims are made that the product diagnoses, treats, cures, or prevents disease.

FDA clearance or approval for this specific system has not been verified.

Individuals with medical concerns should consult an appropriately qualified healthcare professional before use.

Manufacturer Instructions

Always follow the official operating manual and product-specific safety instructions supplied with the unit.

These instructions take precedence over general product information.
