Total Spectrum ELITE (7 Wave 864 LEDs)

Total Spectrum ELITE | 7-Wavelength 864-LED Full-Body Light Panel

The Total Spectrum ELITE is a large-format, seven-wavelength LED light panel designed for broad full-body coverage in dedicated home and professional wellness environments.

With 864 LEDs spanning blue, red, near-infrared, and 1064nm infrared wavelengths, the ELITE combines a wide wavelength range with adjustable pulsing, nine prebuilt modes, individual channel controls, and an included adjustable electric stand for flexible positioning.

At 65 inches tall and 20.5 inches wide, the ELITE is designed for shoppers seeking substantial light coverage from a single large-format system.

Seven-Wavelength Light System

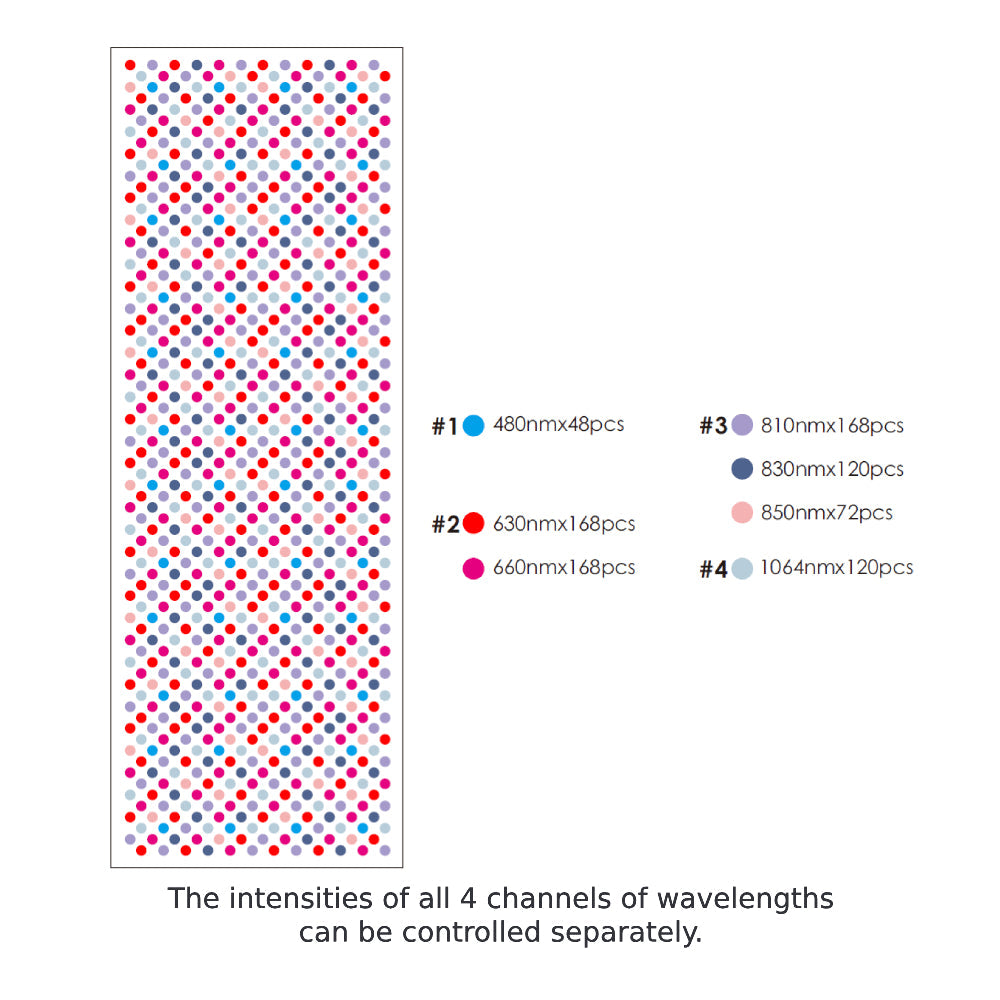

The ELITE incorporates seven wavelengths across four independently adjustable light channels:

• 480nm Blue Light — 6% density
• 630nm Red Light — 19% density
• 660nm Red Light — 19% density
• 810nm Near-Infrared — 19% density
• 830nm Near-Infrared — 14% density
• 850nm Near-Infrared — 9% density
• 1064nm Infrared — 14% density

The multi-wavelength configuration provides access to visible and infrared light through one integrated full-body panel.

Irradiance & Light Output

Manufacturer testing reports:

• 179 mW/cm² at 8 inches measured with a solar power meter
• 121.62 mW/cm² at 6 inches measured with a spectrometer

Actual measured output can vary based on distance, measurement method, equipment, and operating configuration.

Pulsing & Programmable Modes

The ELITE provides a 0–5,000 Hz pulsing range along with nine prebuilt modes for convenient session setup.

A custom mode allows individual adjustment of intensity and pulsing across four channels:

• Red
• Blue
• Near-infrared
• 1064nm infrared

This provides additional control for users who prefer customized light configurations rather than relying exclusively on preset modes.

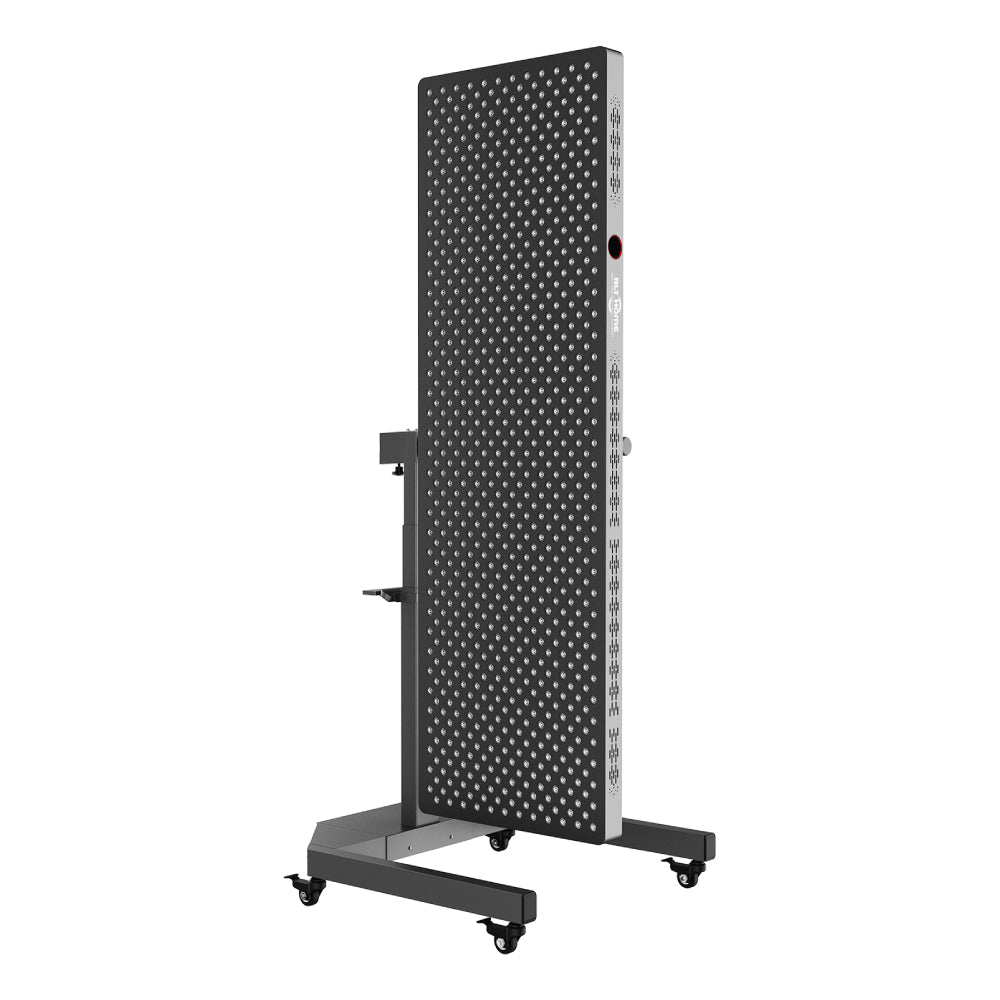

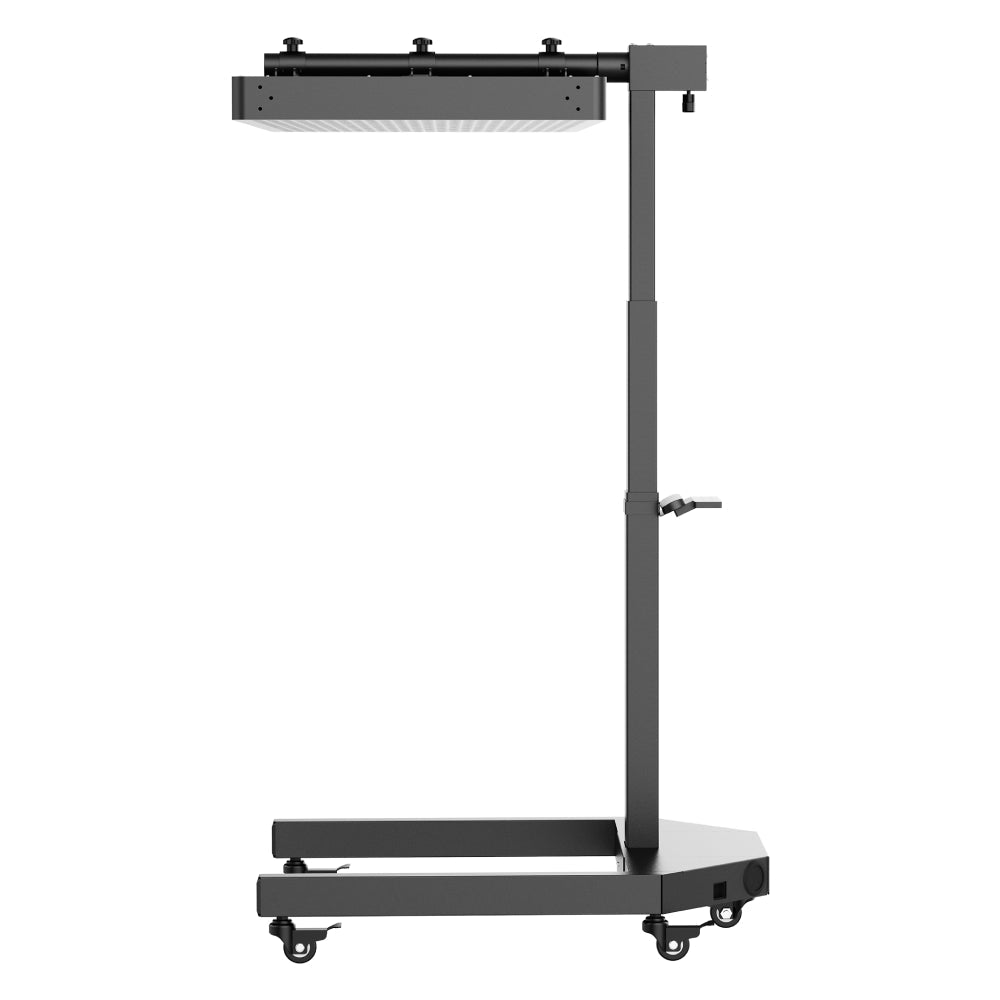

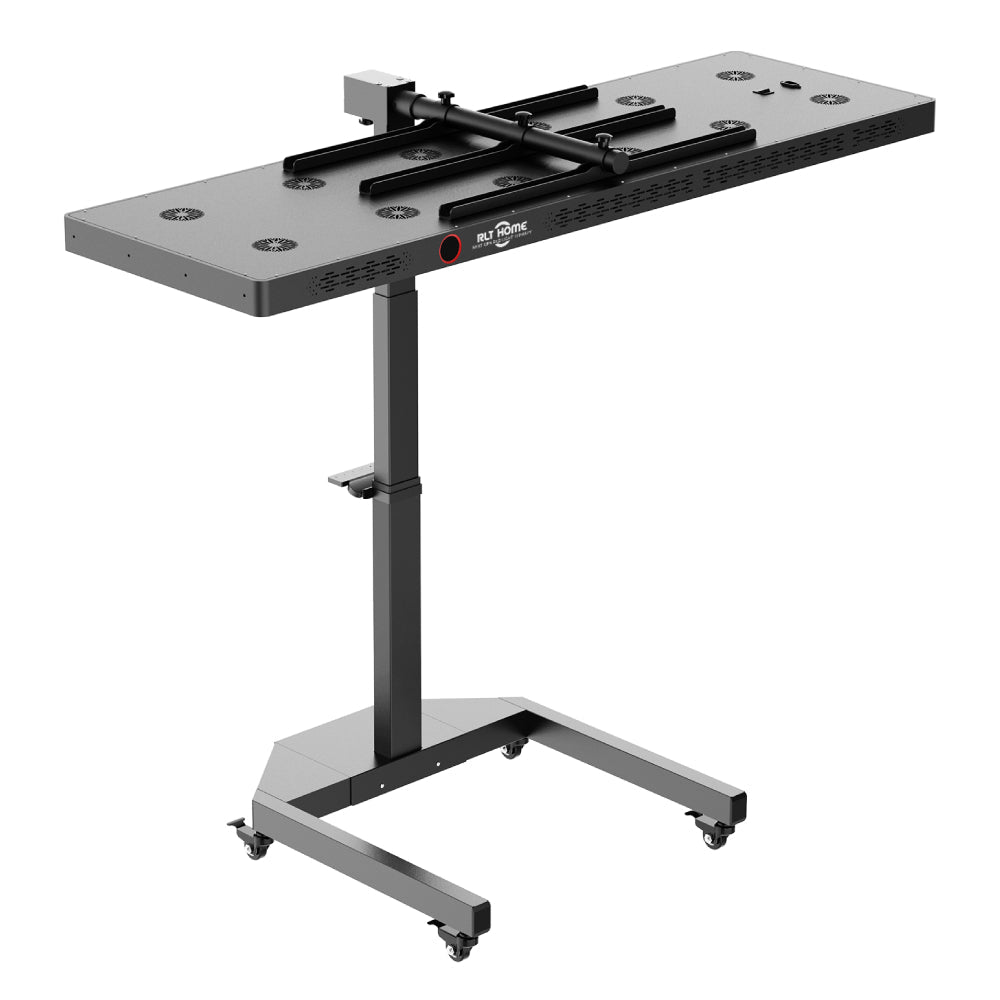

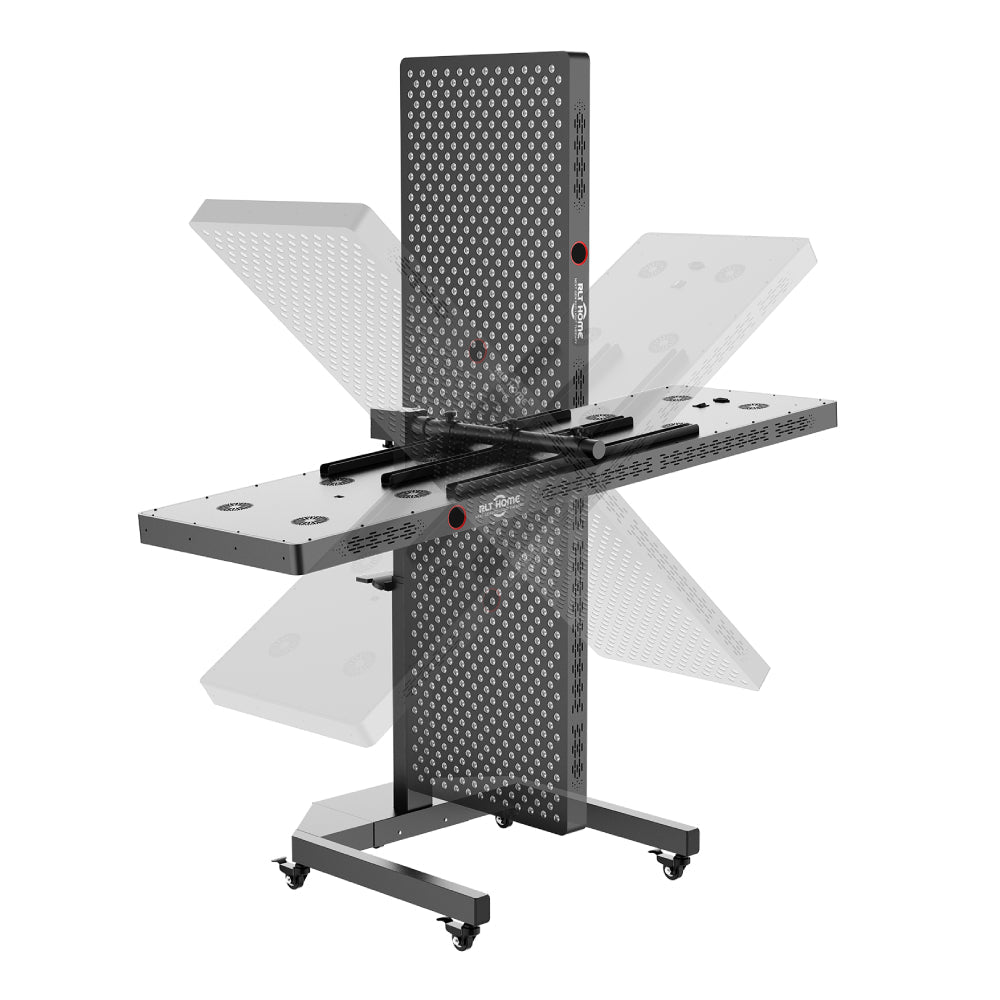

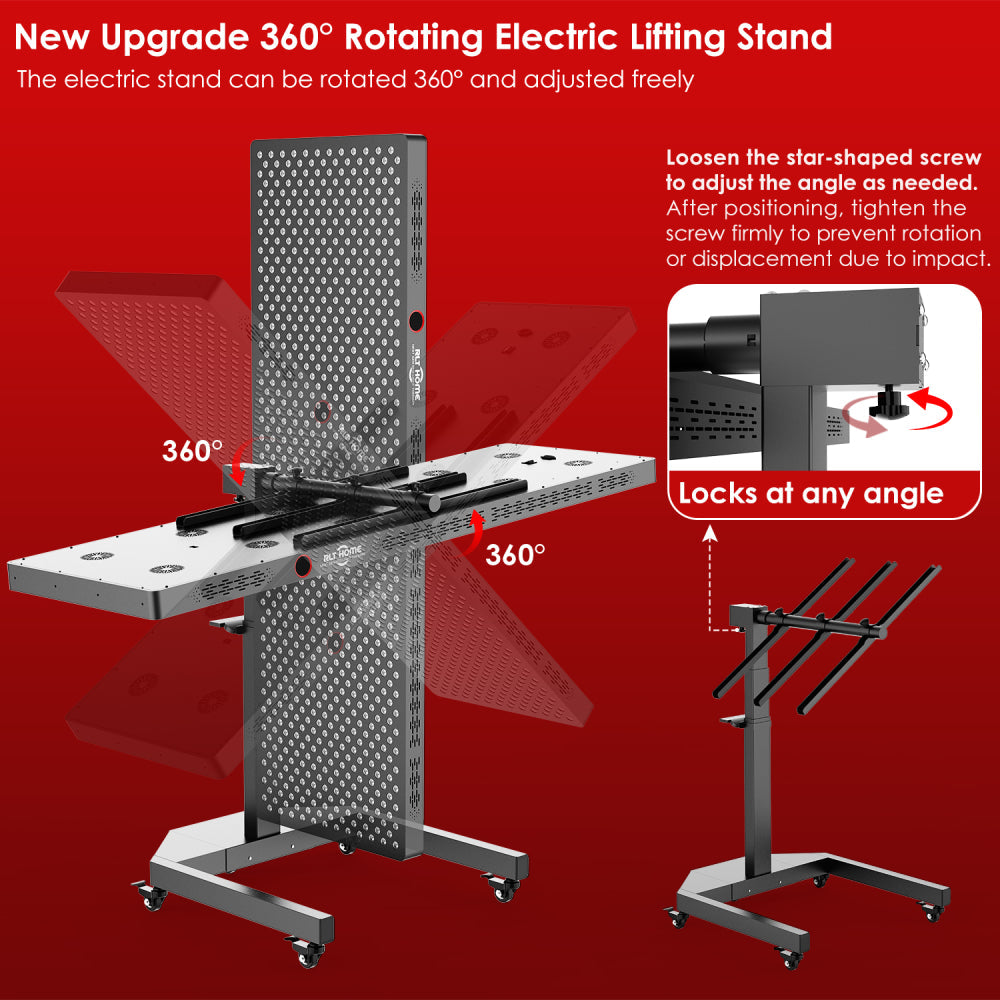

Adjustable Electric Stand

An adjustable electric stand is included with the ELITE, allowing the large-format panel to be repositioned for different session arrangements.

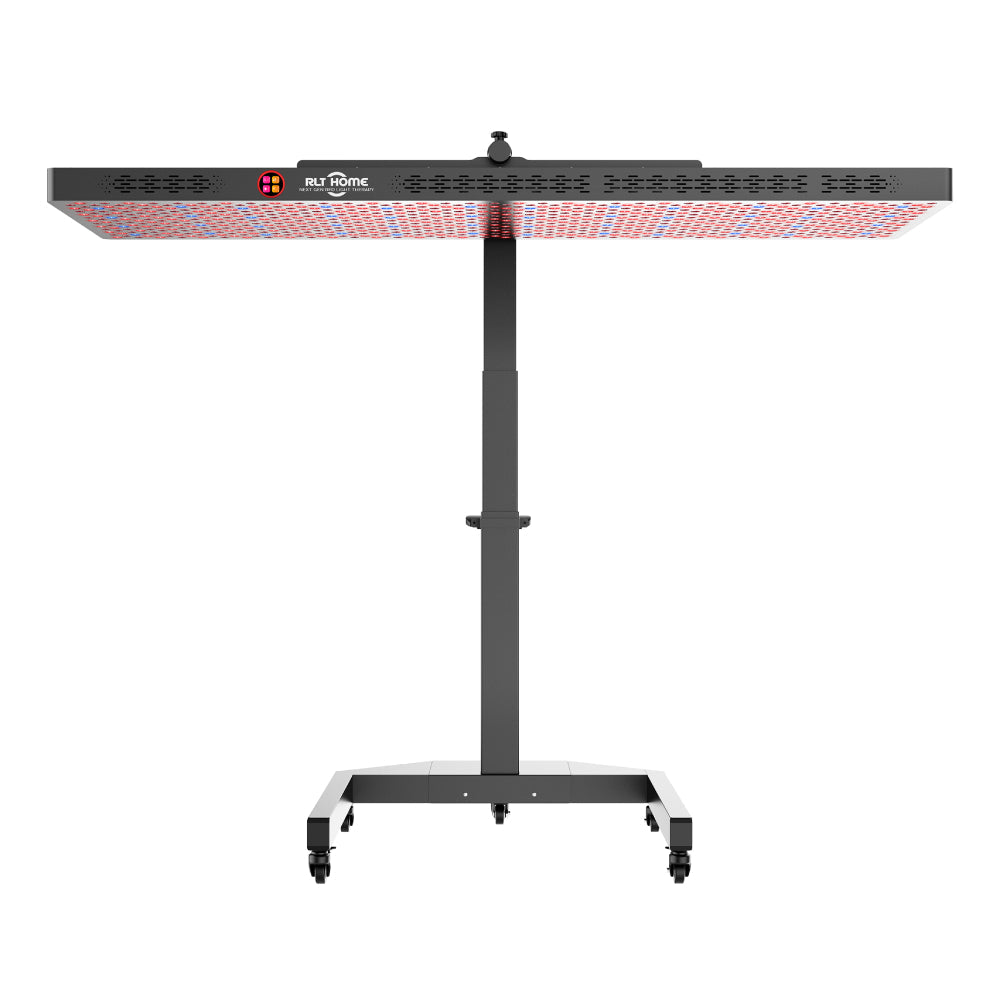

The installed stand adjusts from approximately 29 inches to 64 inches in height and occupies a footprint of approximately 3 × 3 feet.

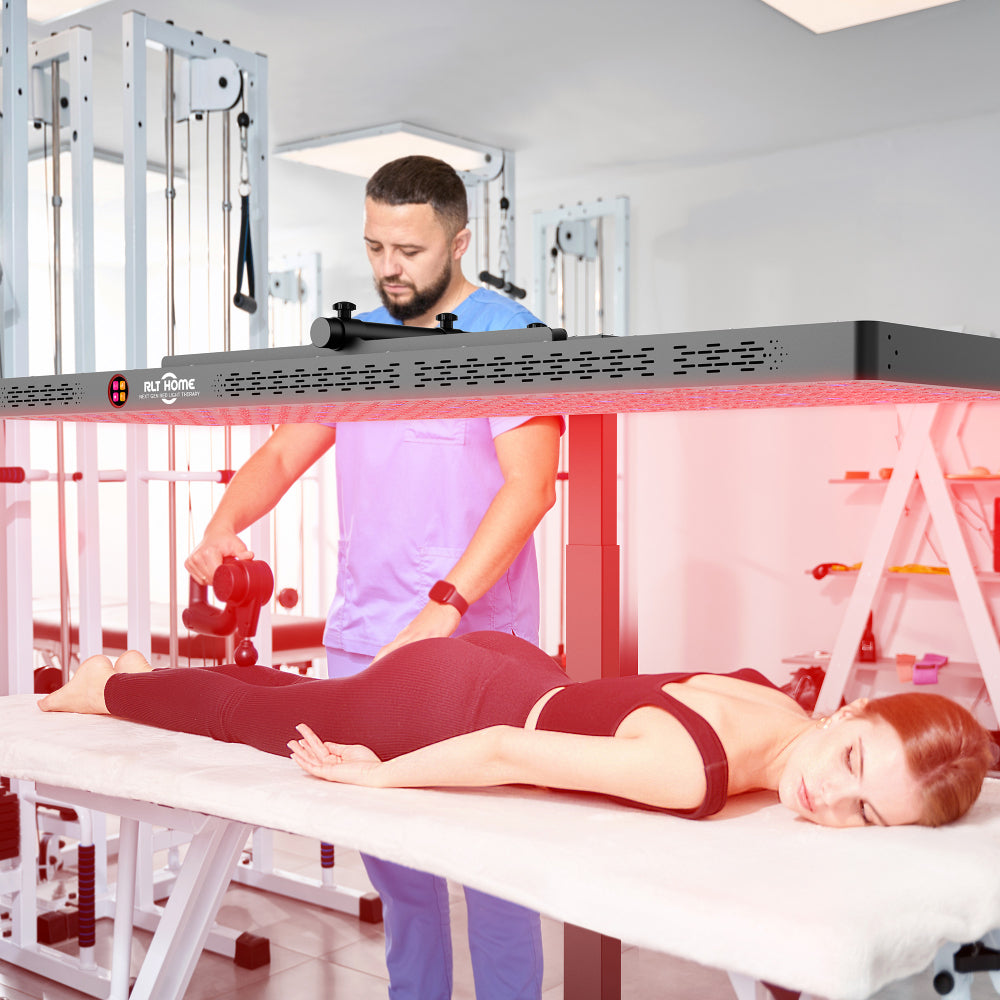

Clearance beneath a bed or massage table is approximately 5.5 inches with wheels or 3 inches without wheels.

Controls & Design

• Touch Interface: Integrated controls for convenient adjustments
• Remote Control: Allows settings to be adjusted away from the panel
• 30° Beam Angle: Focused LED configuration
• LED Lifespan: Rated up to 100,000 hours
• Input Voltage: AC 100–240V
• Housing: Iron

Low-Flicker & EMF Measurements

According to manufacturer testing, the ELITE is designed for flicker-free operation.

Manufacturer measurements report approximately 0.0 μT EMF at distances of 6 inches or greater when measured with a Cornet EMF device.

Measurement results may vary depending on equipment, environment, distance, and operating conditions.

Why Choose the Total Spectrum ELITE?

Choose the Total Spectrum ELITE if you want a large-format panel combining seven wavelengths, 864 LEDs, programmable modes, adjustable pulsing, independent channel controls, and an electric positioning stand in one system.

Its 65-inch height provides substantial coverage without requiring multiple smaller panels, while the included electric stand adds positioning flexibility for different home and professional wellness environments.

Compliance & Certifications

Manufacturer documentation identifies RoHS and CE certifications for applicable product configurations.

RoHS relates to restrictions on specified hazardous substances in electrical and electronic equipment. CE documentation supplied by the manufacturer addresses applicable European electrical-safety and electromagnetic-compatibility requirements.

Certification applicability should be confirmed for the specific product configuration and destination market.

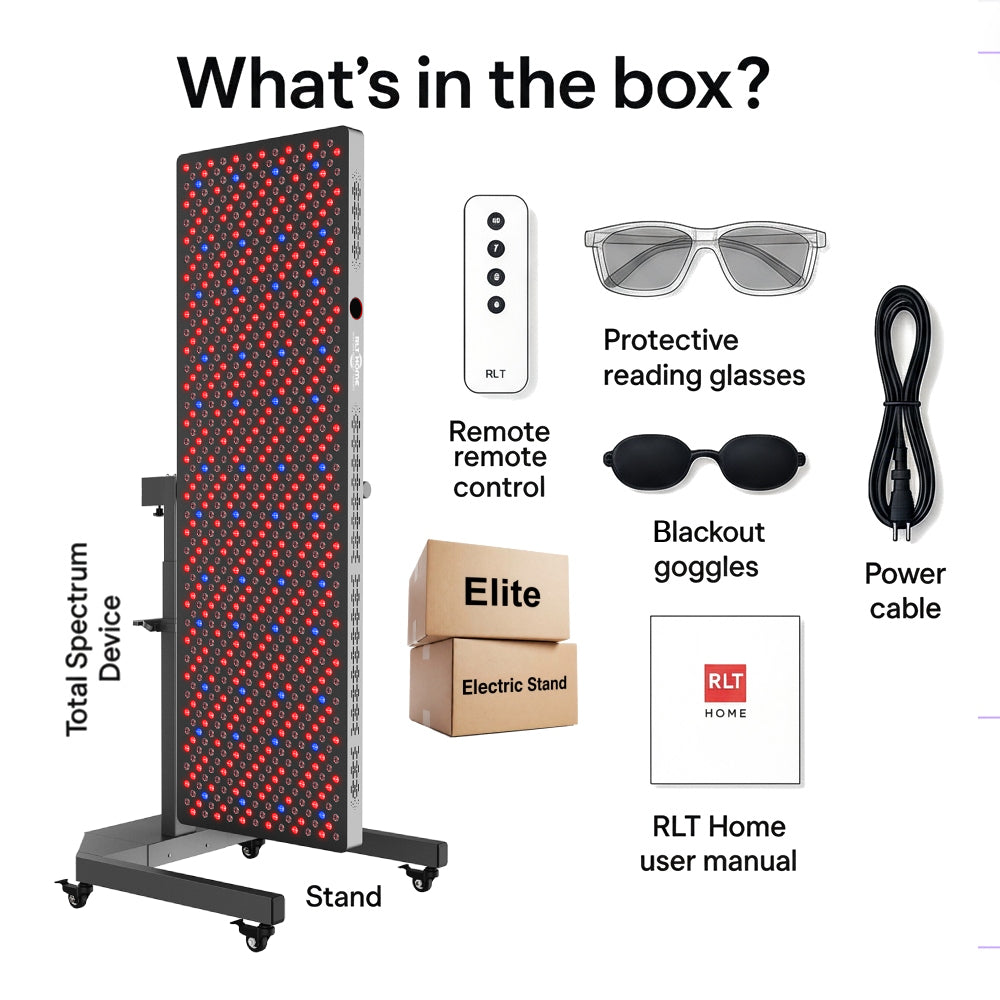

What's Included

• Total Spectrum ELITE Device
• Adjustable Electric Stand
• Remote Control
• Protective Reading Glasses
• Blackout Goggles
• RLT Home User Manual
• Power Cable

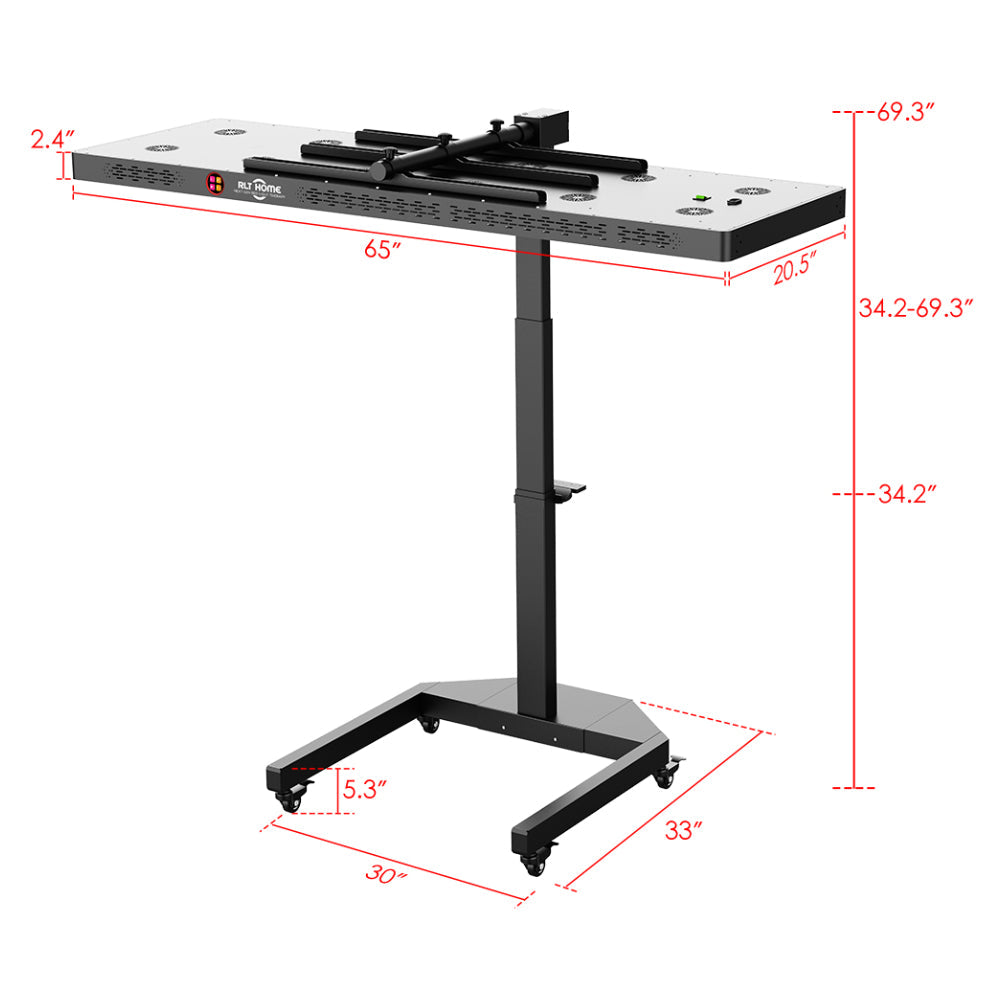

Dimensions & Weight

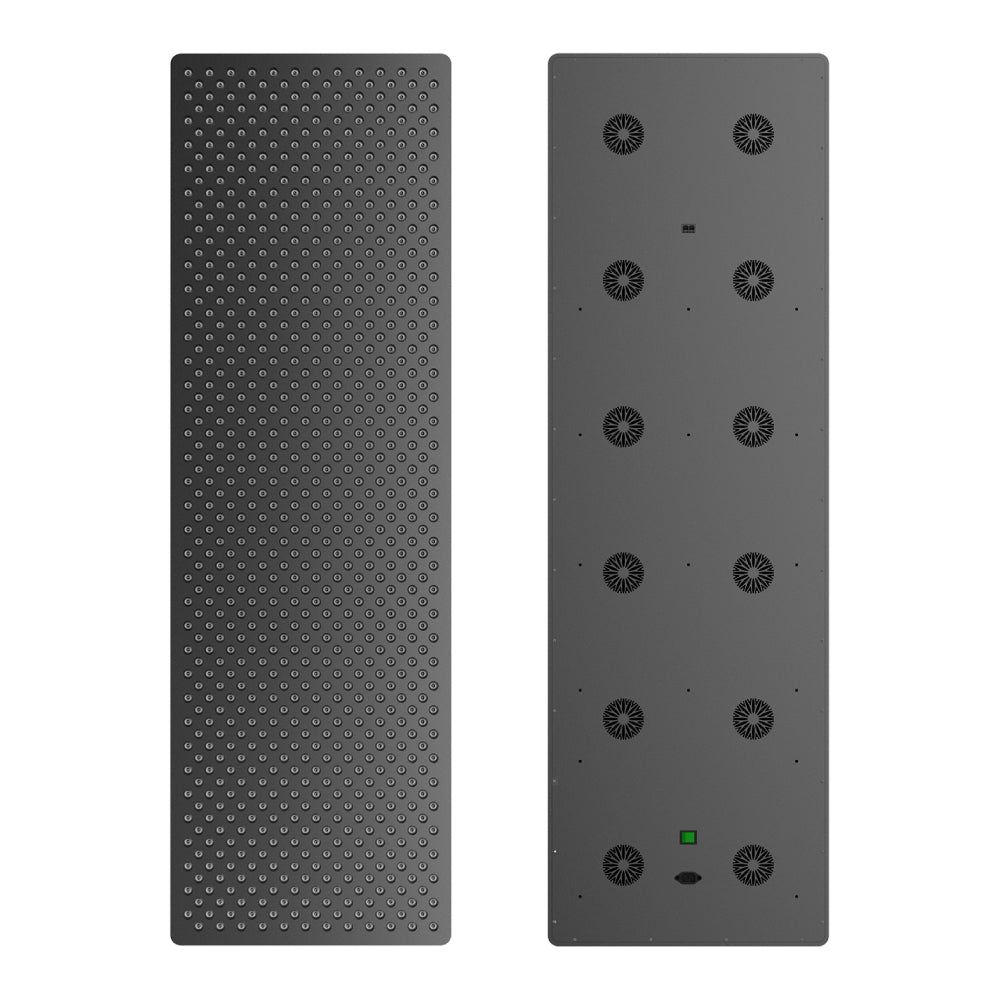

ELITE Device

• Dimensions: 65 × 20.5 × 2.4 in
• Weight: 86 lb
• Shipping Dimensions: 68 × 24 × 7 in
• Shipping Weight: 92.6 lb

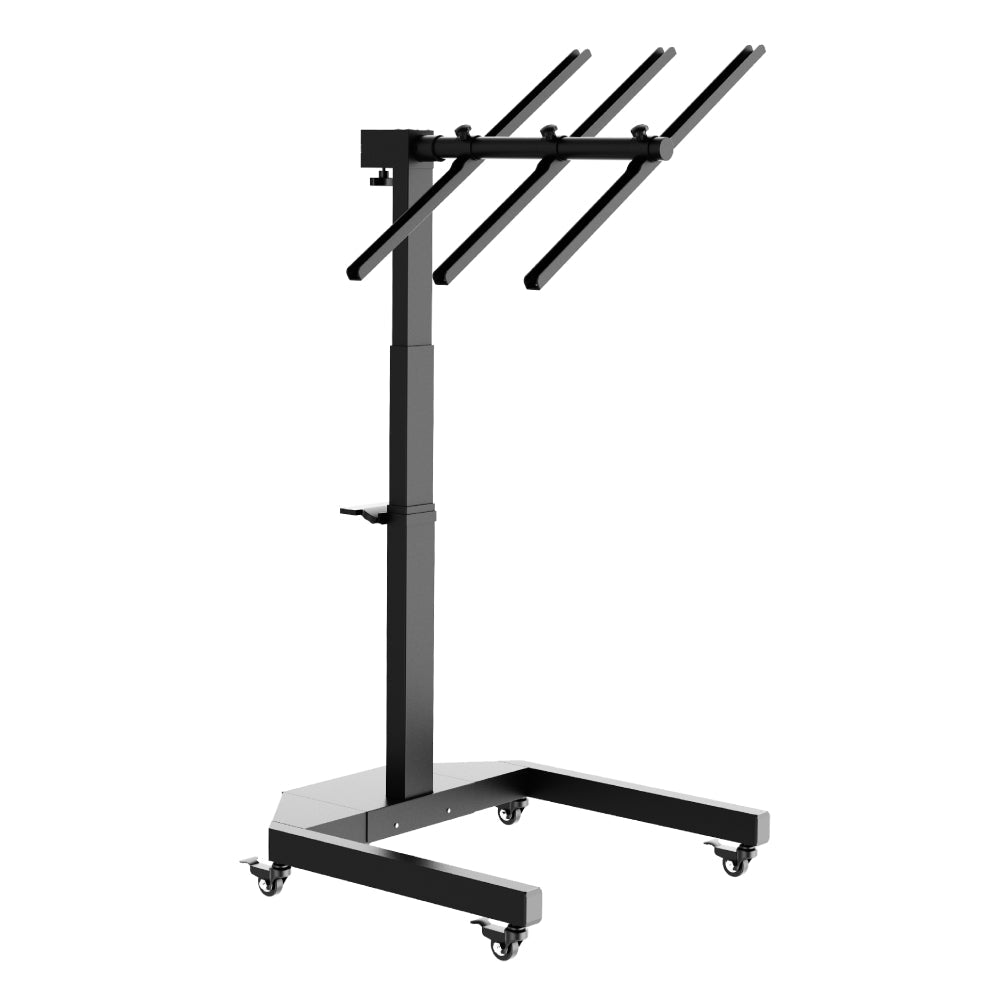

Electric Stand

• Dimensions: 33 × 28 × 5 in
• Weight: 53 lb
• Shipping Dimensions: 33 × 29 × 6 in
• Shipping Weight: 59.5 lb
• Installed Footprint: Approximately 3 × 3 ft
• Installed Height Range: Approximately 29–64 in
• Under-Bed/Table Clearance: 5.5 in with wheels / 3 in without wheels

Shipping

The ELITE device and adjustable electric stand ship separately and may arrive in separate packages.

Confirm that the intended installation area provides sufficient space for the approximately 3 × 3 ft stand footprint and the selected operating position.
