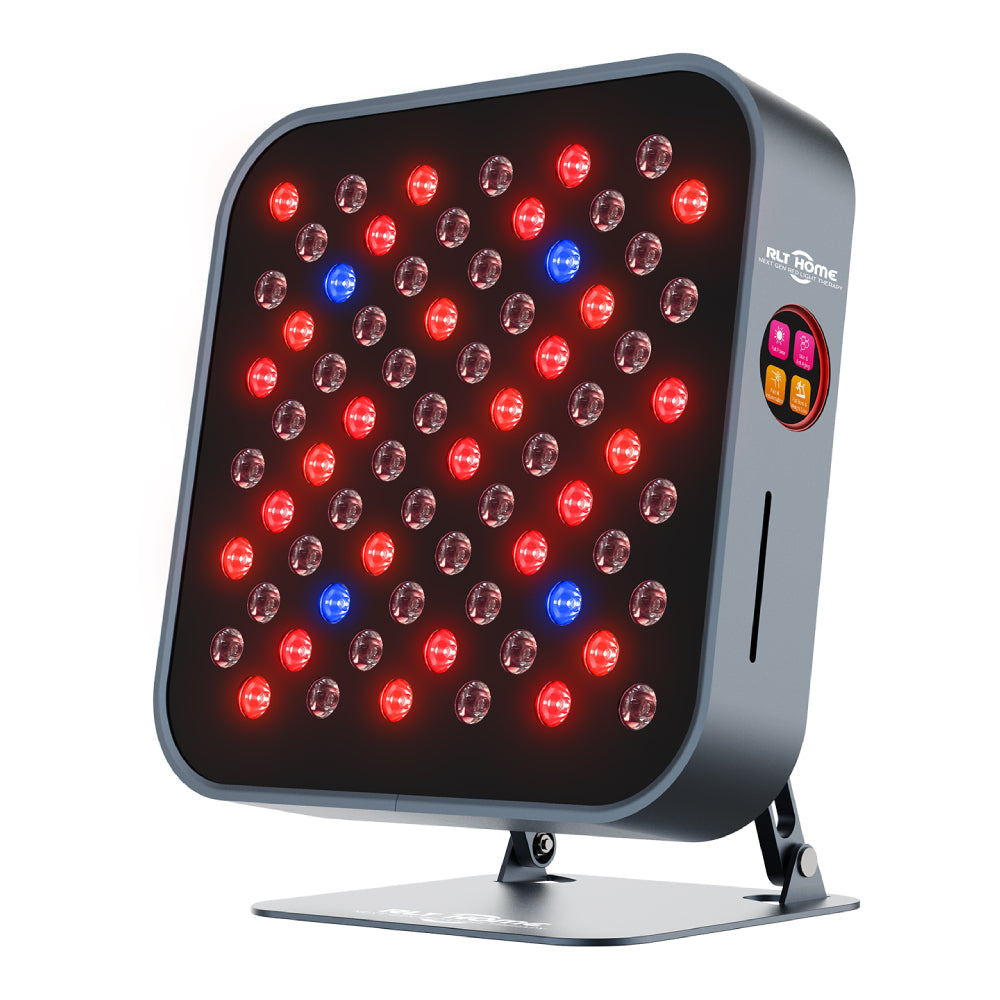

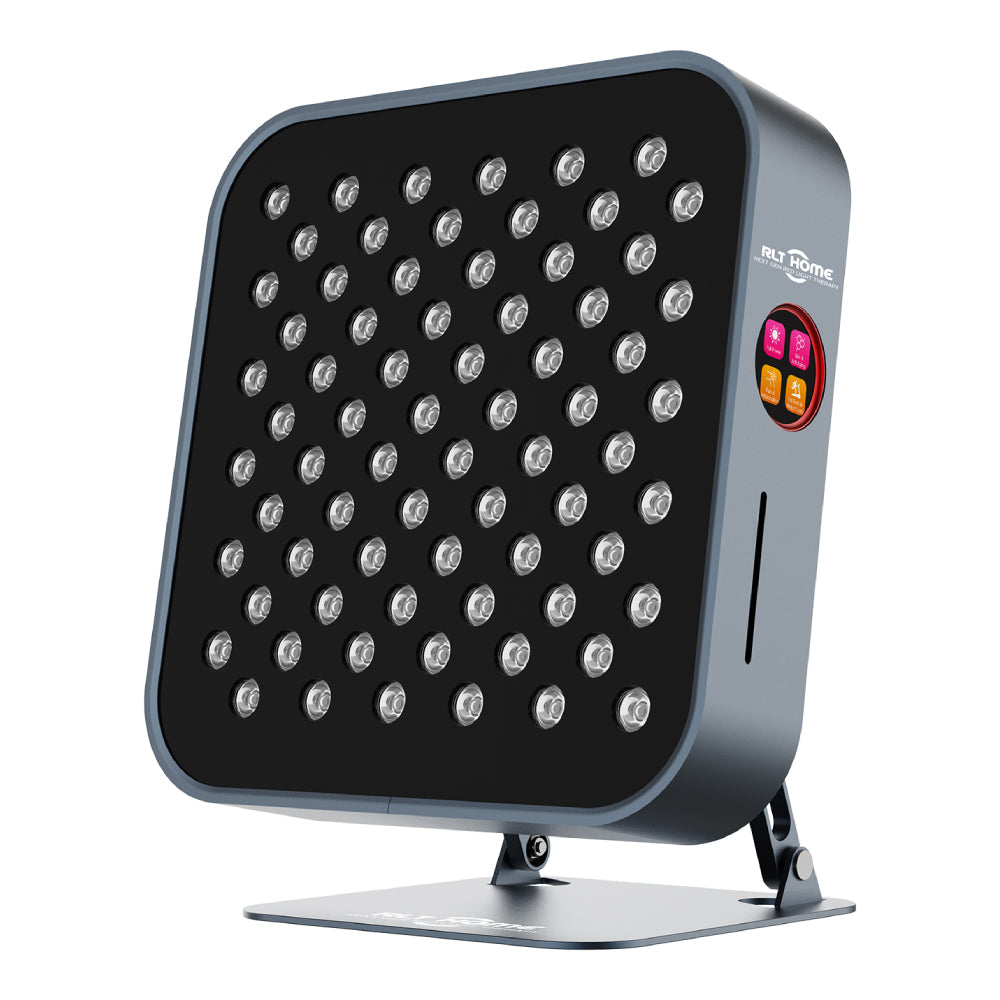

The Total Spectrum MINI is a compact multi-wavelength light panel featuring 72 LEDs and seven wavelengths across blue, red, near-infrared, and infrared light.

Designed for smaller-area light sessions, the MINI provides the technology of the Total Spectrum lineup in a compact format suited to areas such as the face, hands, arms, legs, and other targeted areas.

With adjustable pulsing, nine prebuilt modes, individual channel controls, touchscreen operation, and remote control, the MINI provides substantial customization without requiring a full-size panel.

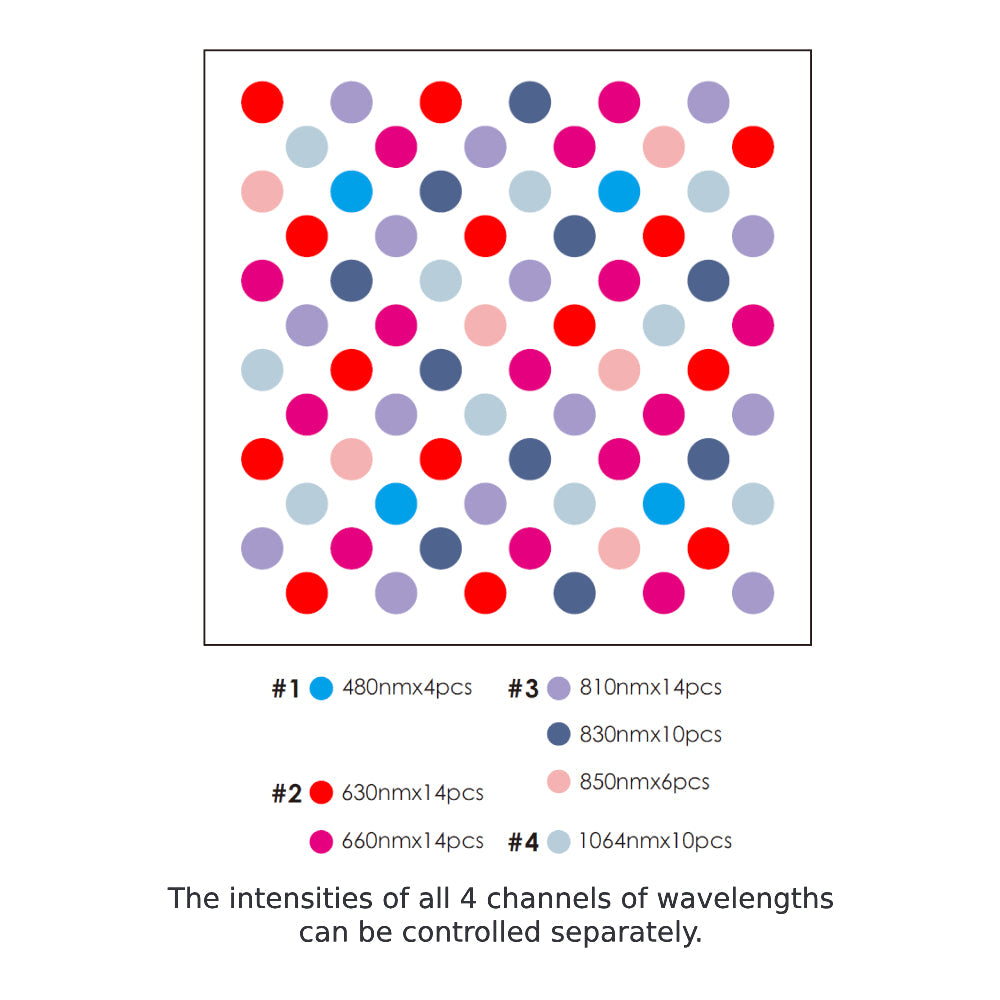

7-Wavelength Spectrum

The MINI combines seven wavelengths in one compact device:

• 480nm Blue Light: 6% density
• 630nm Red Light: 19% density
• 660nm Red Light: 19% density
• 810nm Near-Infrared: 19% density
• 830nm Near-Infrared: 14% density
• 850nm Near-Infrared: 9% density
• 1064nm Infrared: 14% density

This multi-wavelength configuration provides a broader selection of light options than conventional single- or dual-wavelength panels.

Irradiance & Power

Measured output:

• 170 mW/cm² at 8 inches — measured with a Solar Power Meter
• 98.7 mW/cm² at 6 inches — measured with a Spectrometer

Adjustable Pulsing & Modes

The MINI provides multiple options for configuring light sessions:

• Pulsing range: 0–5,000 Hz
• Prebuilt modes: 9
• Custom mode: Individual intensity and pulsing adjustments across four channels — red, blue, near-infrared, and 1064nm

Low-Flicker & EMF Measurements

The manufacturer specifies:

• No flicker
• ≈0.0 μT EMF at 6 inches or greater, measured with a Cornet EMF device

These specifications describe the manufacturer's reported device measurements and operating characteristics.

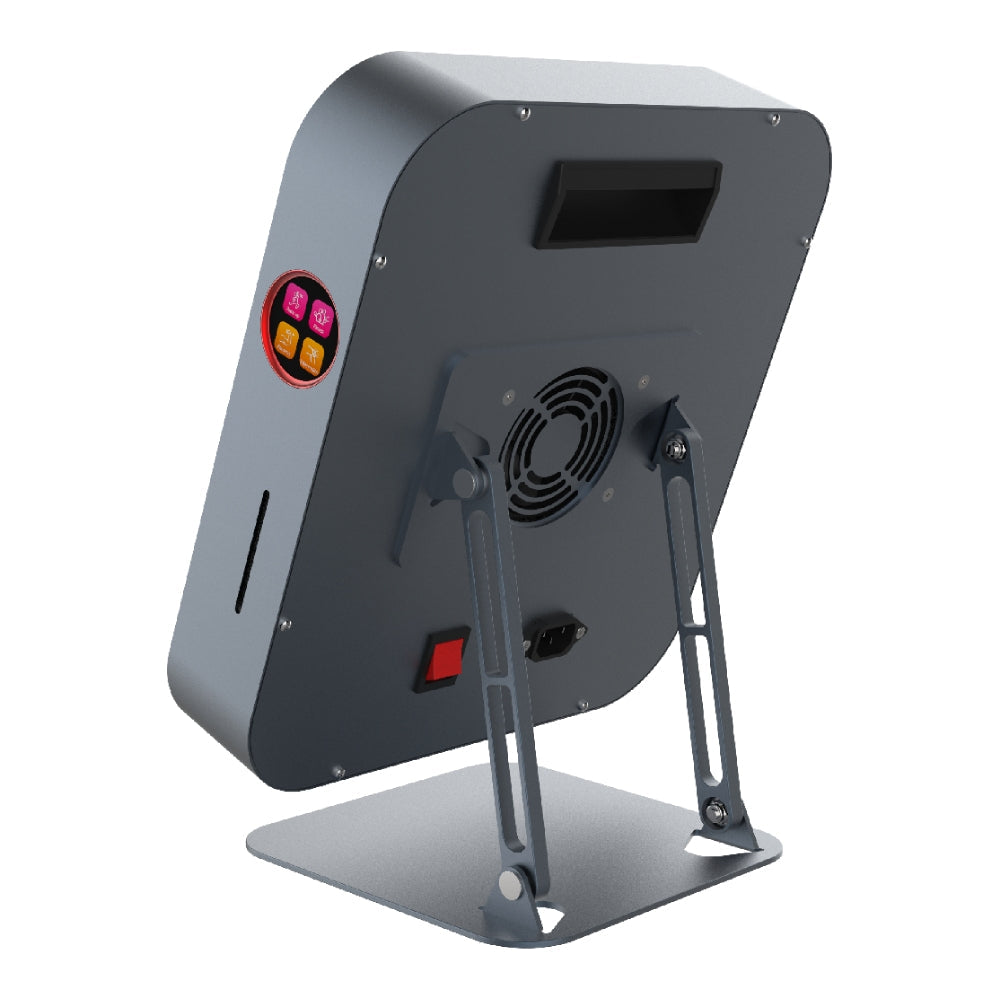

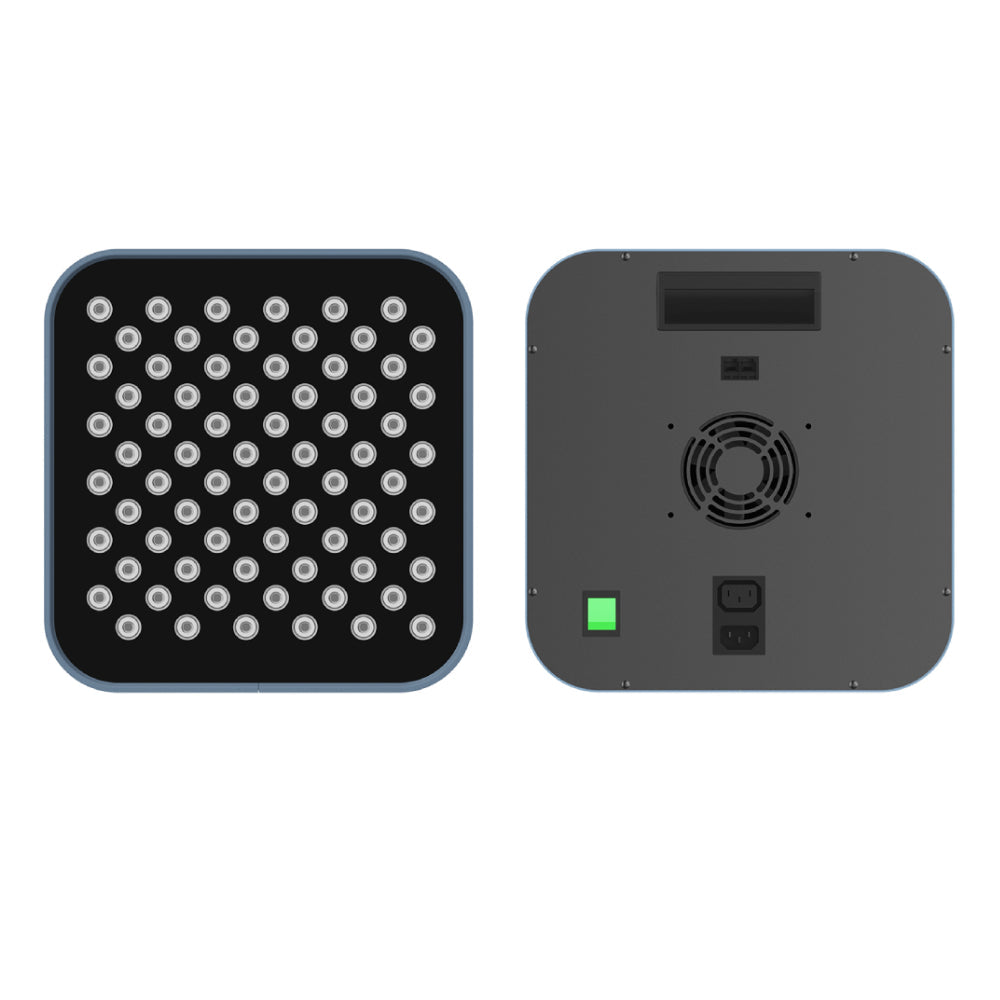

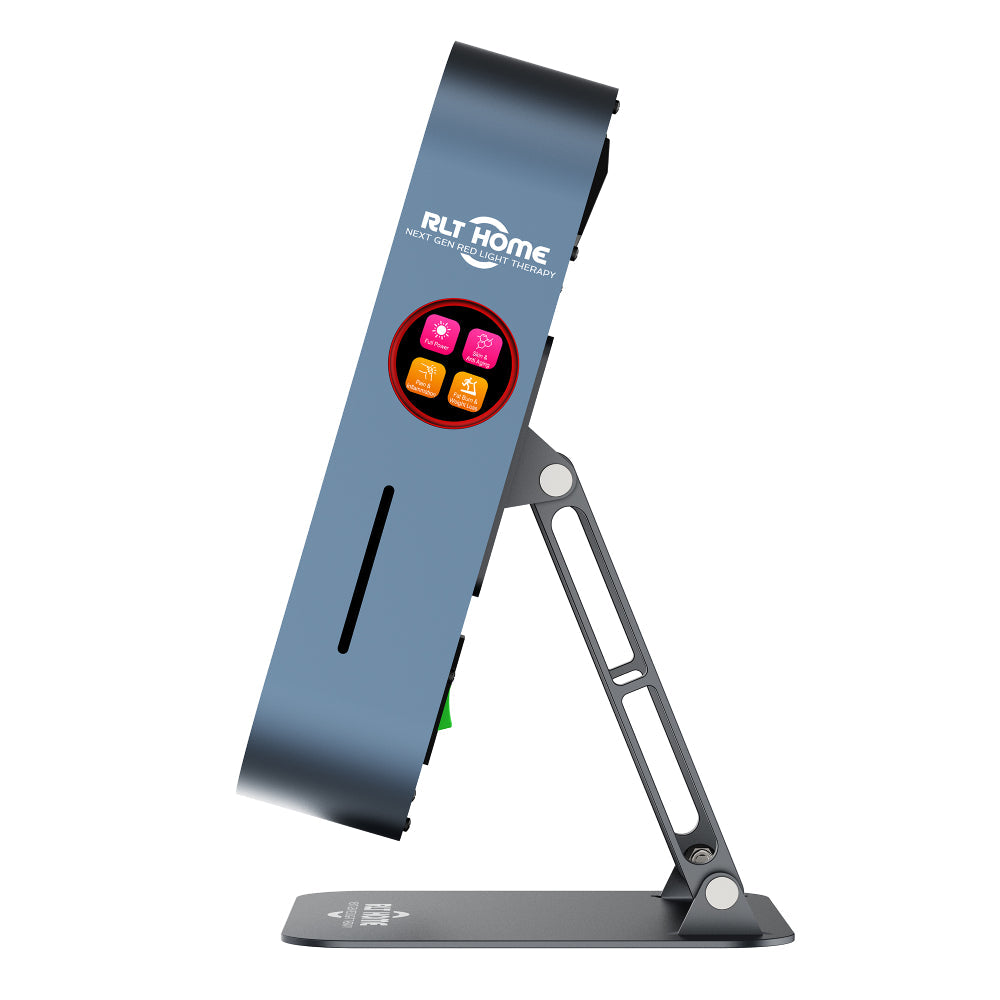

Controls & Design

The MINI combines compact dimensions with convenient session controls:

• Touch interface
• Remote control
• 30° beam angle
• LED lifespan: 100,000 hours
• Input voltage: AC 100–240V

Why Choose the Total Spectrum MINI?

Choose the Total Spectrum MINI if you want the seven-wavelength configuration of the Total Spectrum lineup in a smaller device designed for targeted light sessions.

Its combination of 72 LEDs, seven wavelengths, adjustable pulsing, nine prebuilt modes, custom channel controls, touchscreen operation, and remote control provides substantial functionality in a compact format.

For shoppers seeking broader full-body coverage, larger Total Spectrum models such as the ULTRA or ELITE may be better suited to the space and intended setup.

Compliance & Certifications

The manufacturer references the following product compliance certifications:

• RoHS
• CE Low Voltage Directive
• CE Electromagnetic Compatibility Directive

Certification documentation and applicability should be confirmed for the specific product configuration and destination where required.

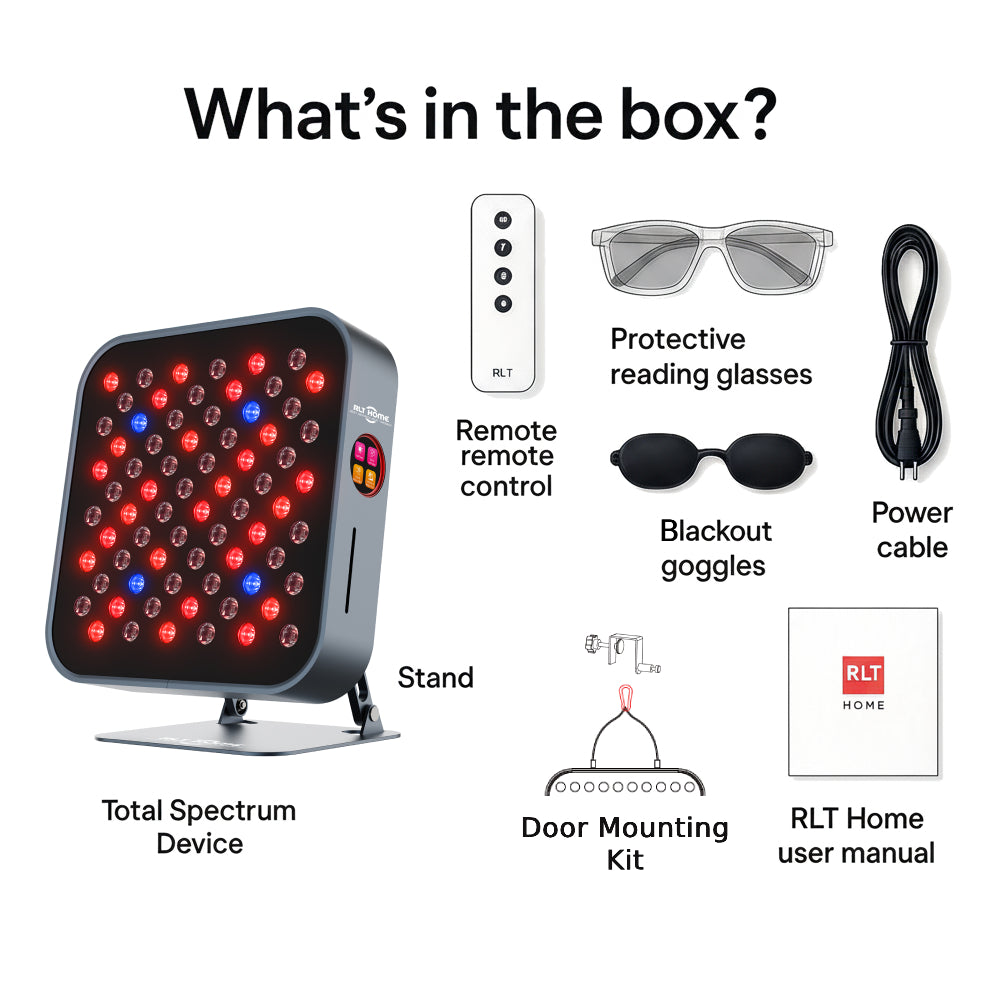

What's in the Box

• Total Spectrum MINI Device

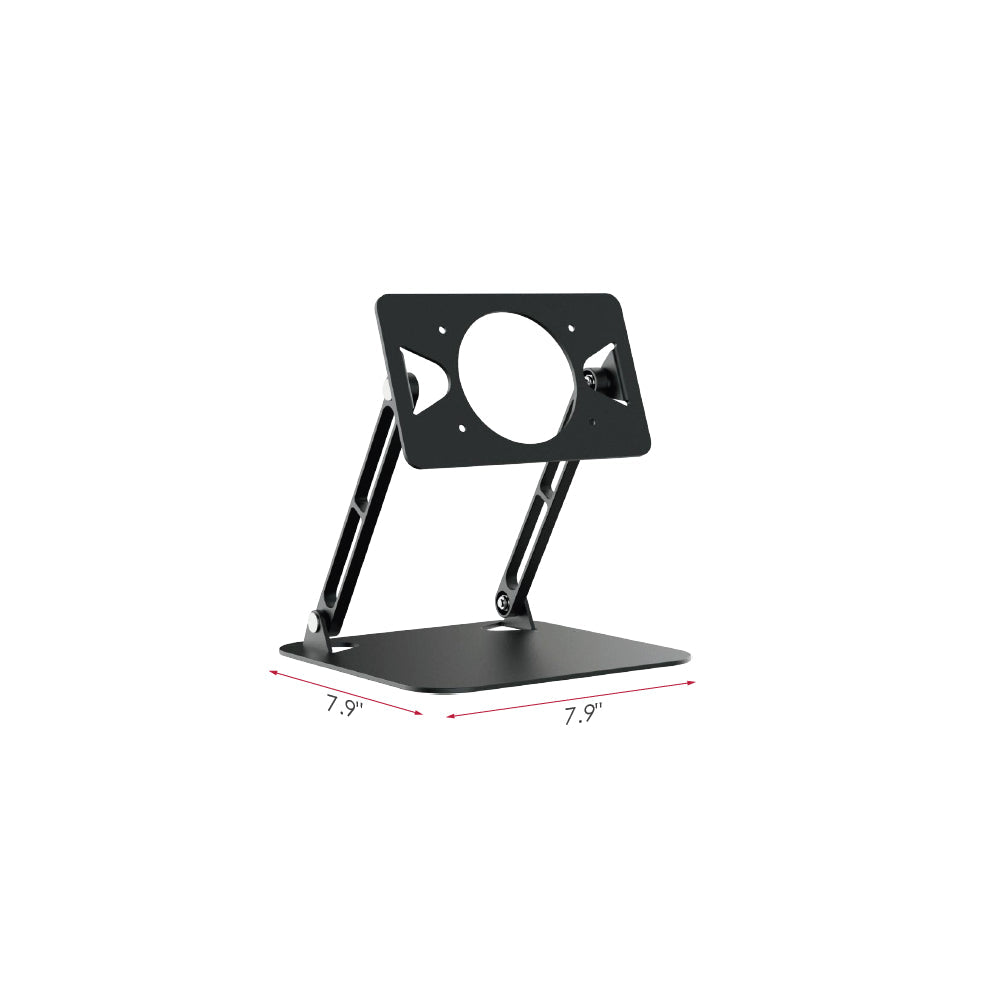

• Stand
• Remote Control
• Protective Reading Glasses
• Blackout Goggles
• RLT Home User Manual
• Power Cable

Specifications

• LED Count: 72
• Wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, 1064nm
• Pulsing Range: 0–5,000 Hz
• Prebuilt Modes: 9
• Beam Angle: 30°
• Voltage: AC 100–240V
• LED Lifespan: 100,000 hours

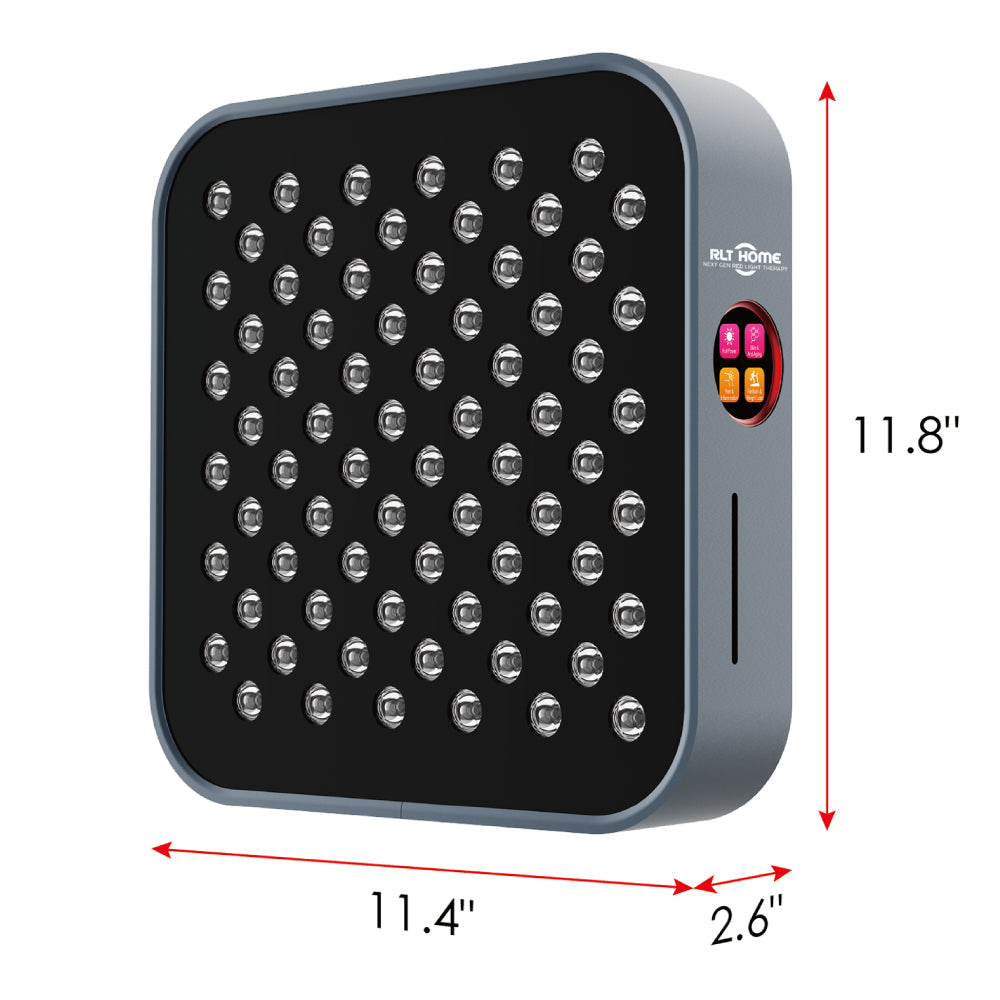

• Device Dimensions: 300 × 290 × 65 mm / 11.8 × 11.4 × 2.6 in
• Device Weight: 4 kg / 8.8 lb
• Shipping Dimensions: 380 × 375 × 180 mm / 15 × 15 × 7 in
• Shipping Weight: 6 kg / 13.23 lb
• Housing: Aluminum
