Total Spectrum ULTRA (7 Wave 480 LEDs)

Total Spectrum ULTRA | 7-Wavelength 480-LED Full-Body Light Panel

The Total Spectrum ULTRA is a seven-wavelength LED light system designed for broad full-body coverage in home and professional wellness environments.

With 480 LEDs spanning blue, red, near-infrared, and 1064nm infrared wavelengths, the ULTRA combines a wide wavelength range with adjustable pulsing, nine prebuilt modes, custom channel controls, touch and voice operation, Bluetooth audio, and an included adjustable electric stand.

At 64.3 inches tall and 11.8 inches wide, the ULTRA provides a large-format light surface while maintaining a narrower profile than the Total Spectrum ELITE.

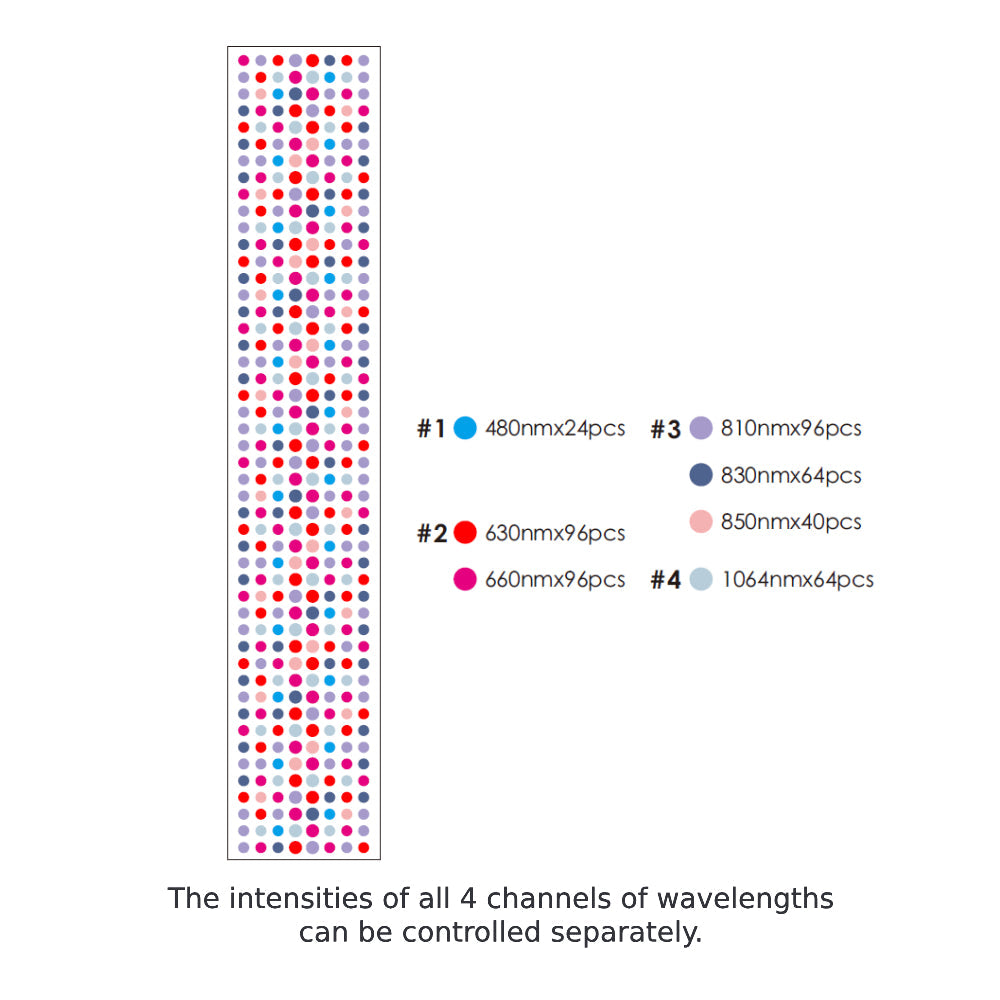

Seven-Wavelength Light System

The ULTRA incorporates seven wavelengths across four adjustable light channels:

• 480nm Blue Light — 5% density
• 630nm Red Light — 20% density
• 660nm Red Light — 20% density
• 810nm Near-Infrared — 20% density
• 830nm Near-Infrared — 13% density
• 850nm Near-Infrared — 8% density
• 1064nm Infrared — 14% density

The multi-wavelength configuration provides access to visible and infrared light through one integrated full-body panel.

Irradiance & Light Output

Manufacturer testing reports:

• 174 mW/cm² at 8 inches measured with a solar power meter
• 119.28 mW/cm² at 6 inches measured with a spectrometer

Actual measured output can vary based on distance, measurement method, equipment, and operating configuration.

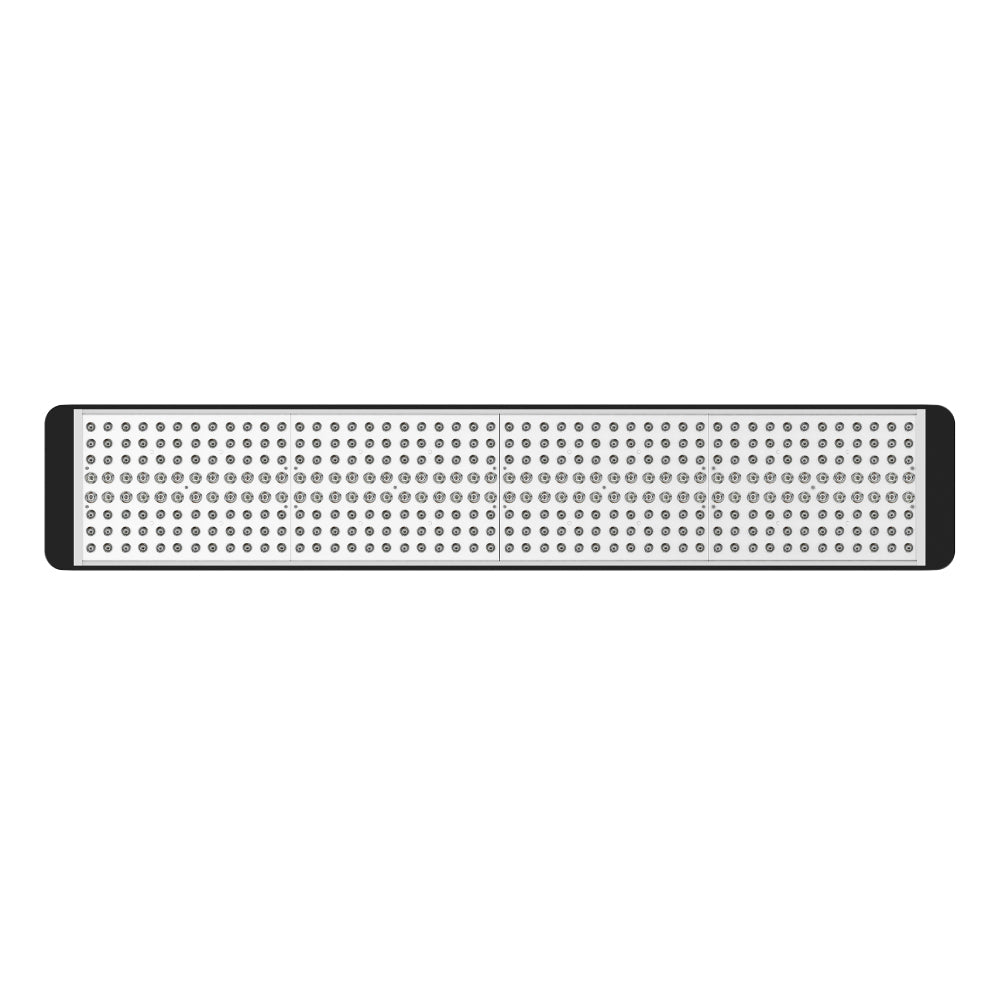

Multi-Angle LED Optics

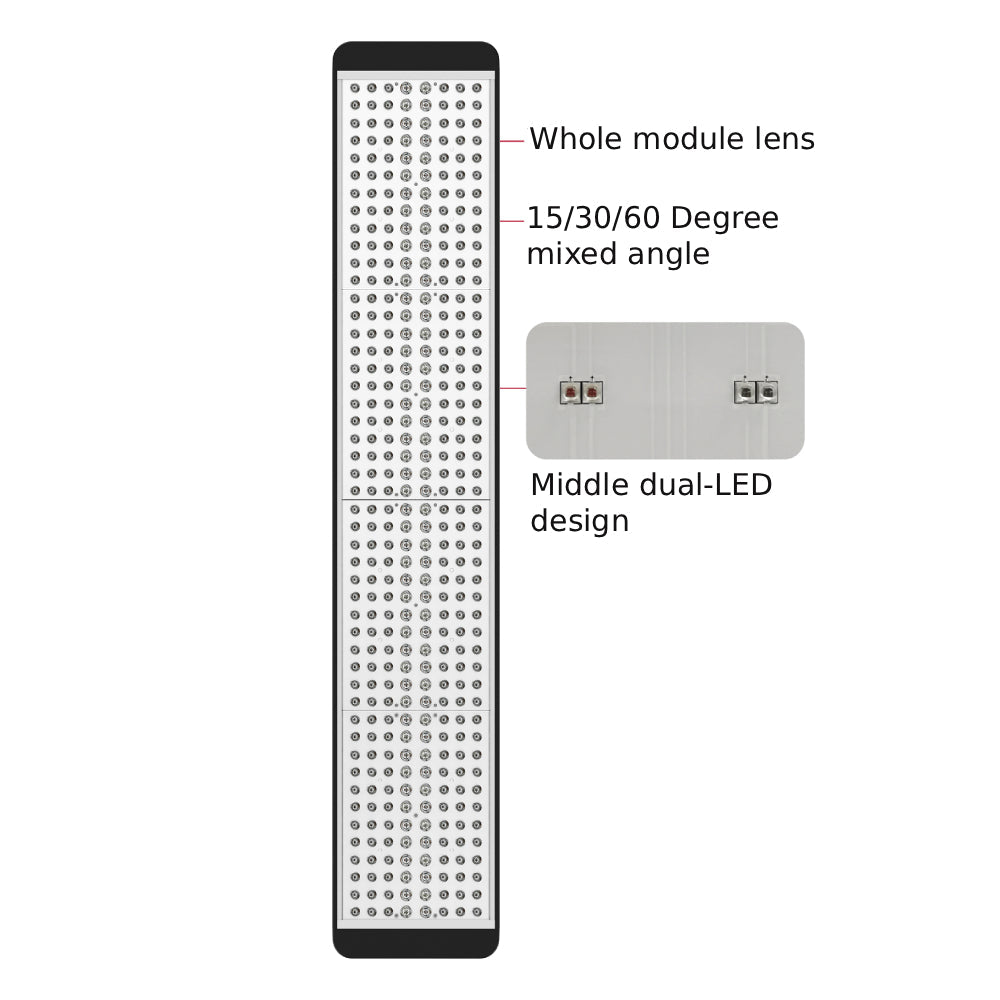

The ULTRA incorporates 15°, 30°, and 60° beam angles across its LED array.

The different lens angles are designed to balance concentrated light delivery with broader coverage across the panel's illuminated area.

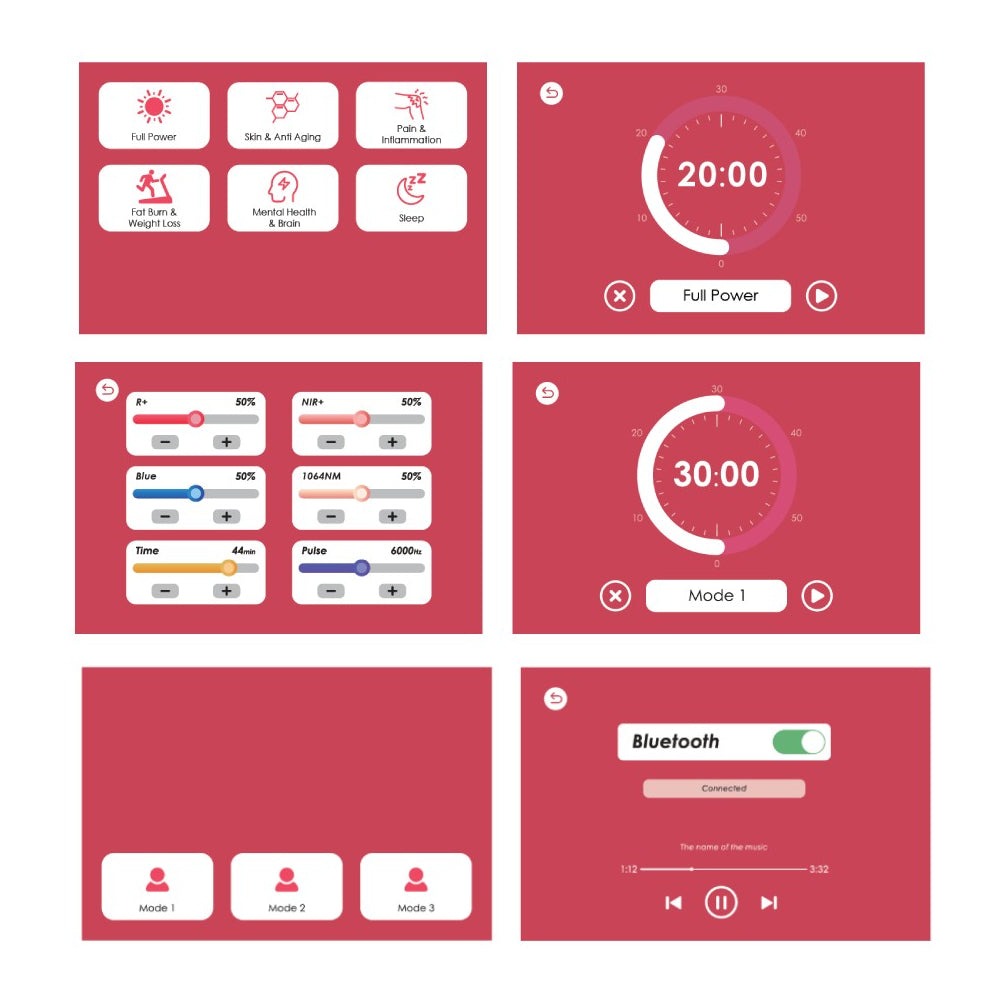

Pulsing & Programmable Modes

The ULTRA provides a 0–5,000 Hz pulsing range along with nine prebuilt modes for convenient session setup.

A custom mode allows individual adjustment of intensity and pulsing across four channels:

• Red
• Blue
• Near-infrared
• 1064nm infrared

This provides additional control for users who prefer customized light configurations rather than relying exclusively on preset modes.

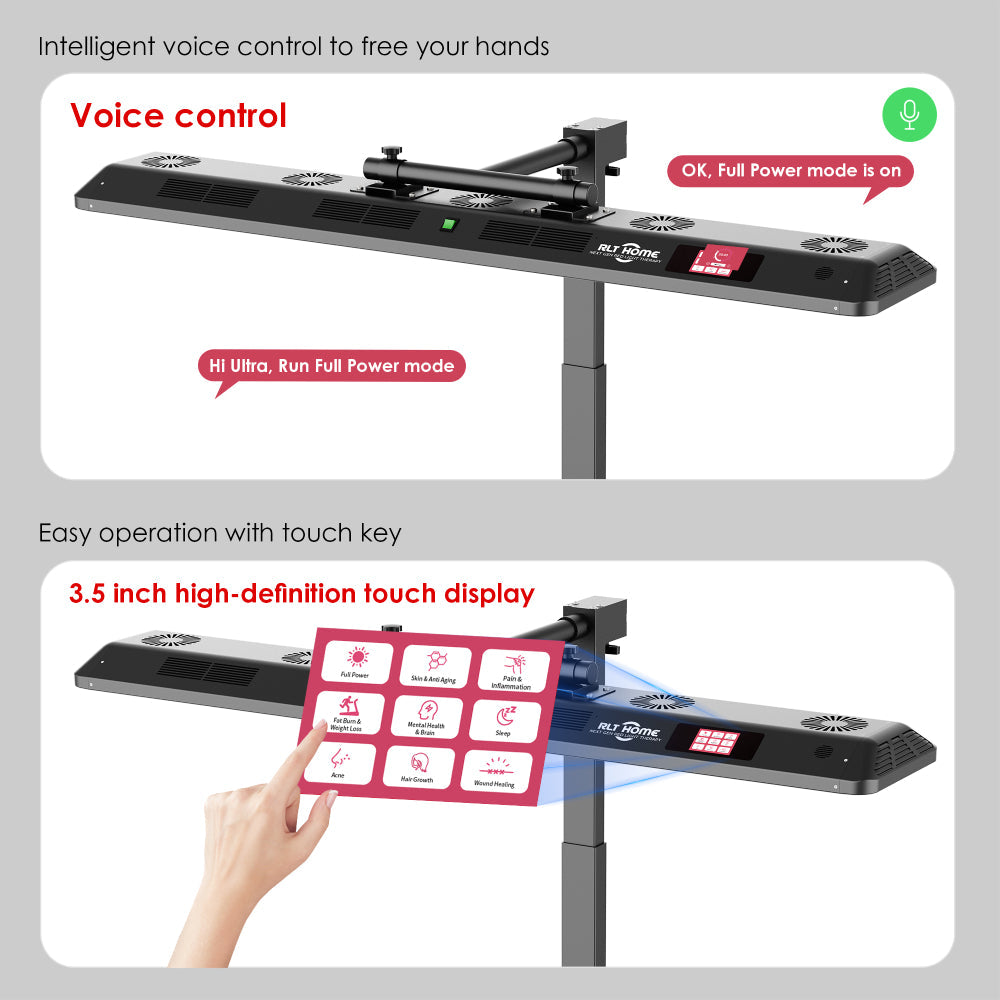

Touch, Voice & Bluetooth Controls

The ULTRA incorporates touch and voice controls, allowing key settings to be managed directly through the system without requiring a handheld remote.

Integrated Bluetooth audio adds another convenience feature for dedicated home or professional wellness environments.

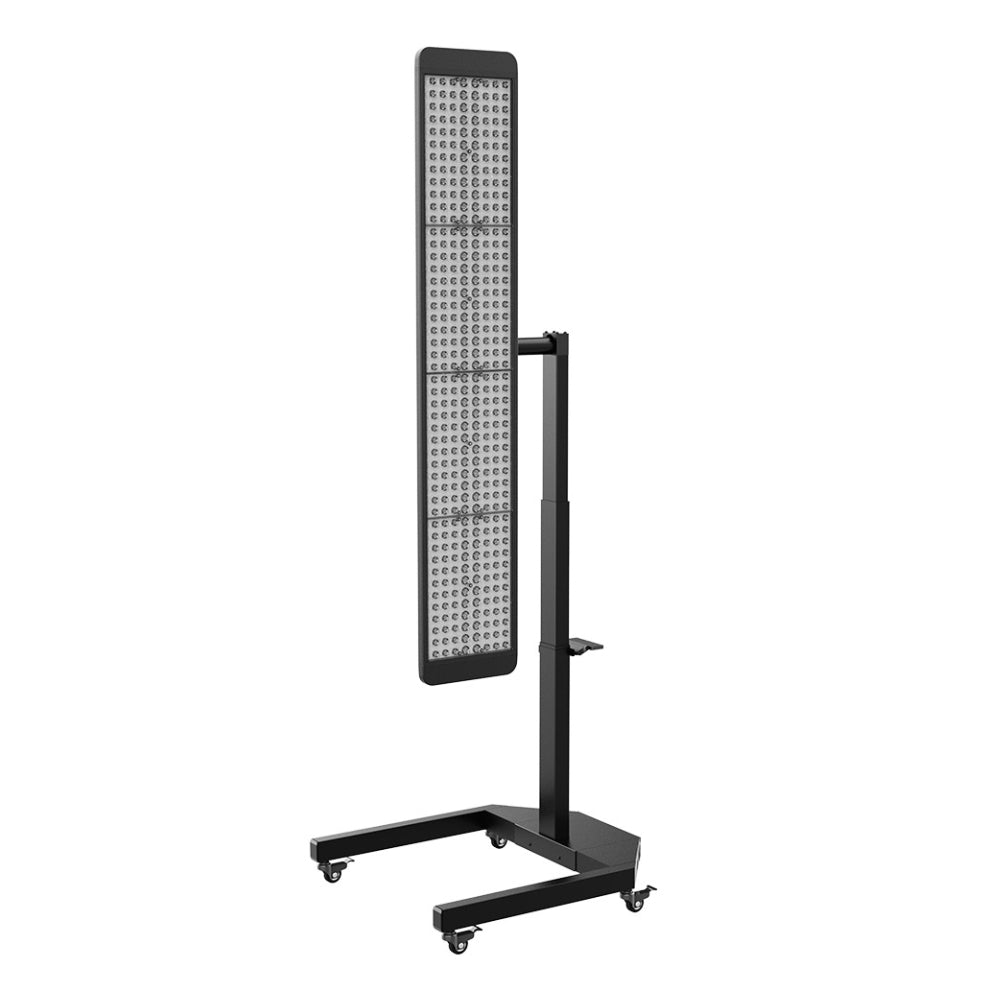

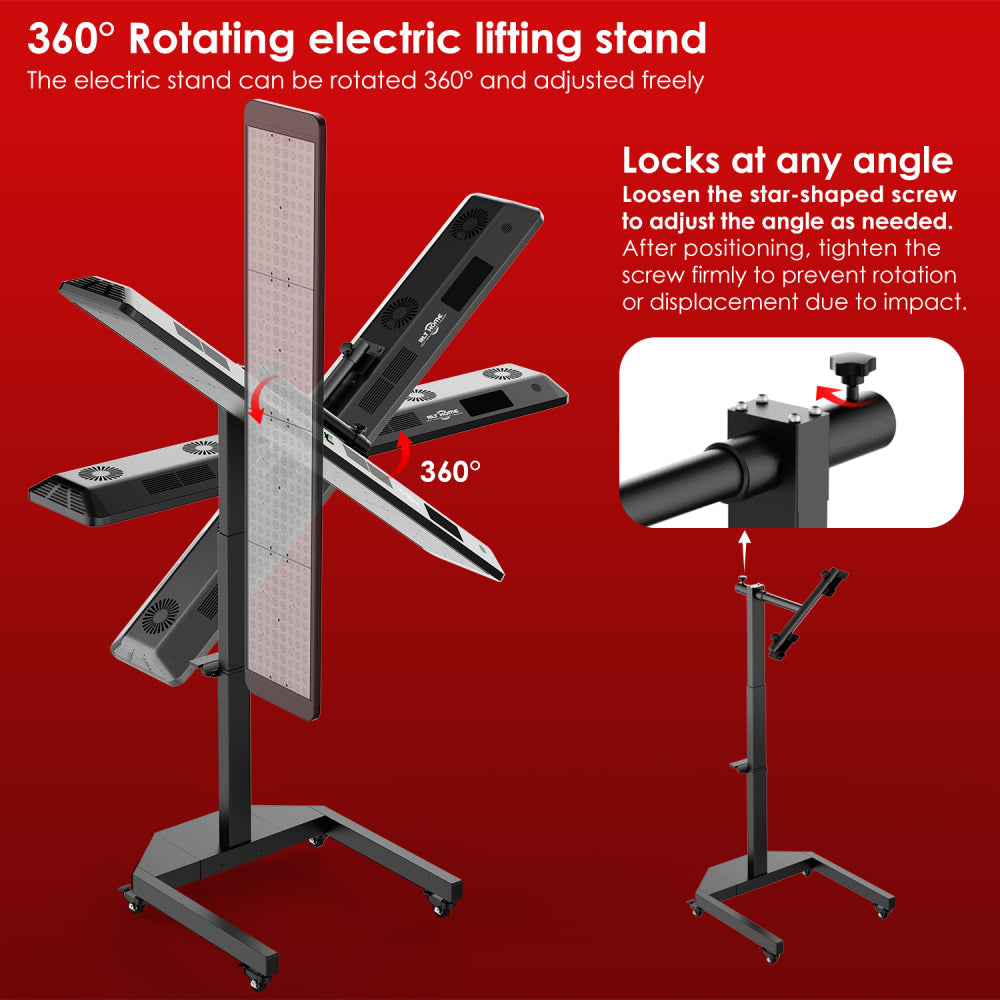

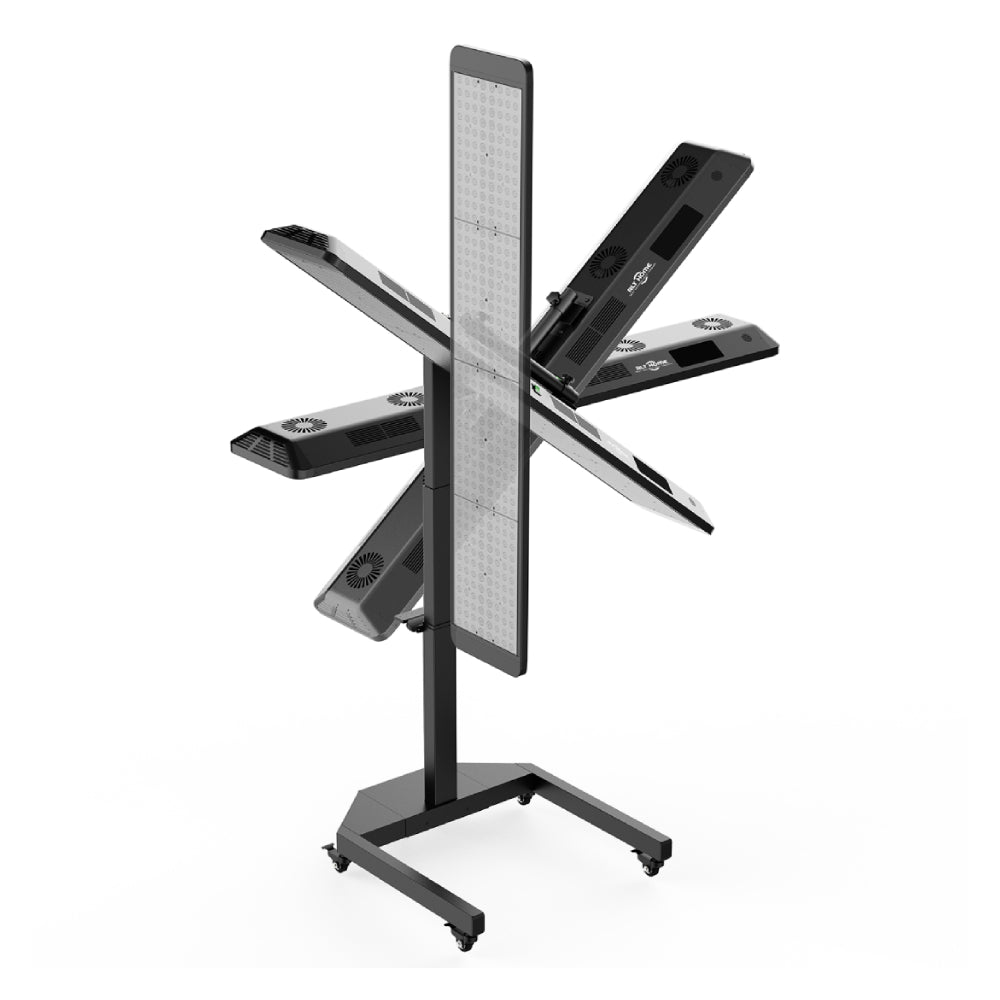

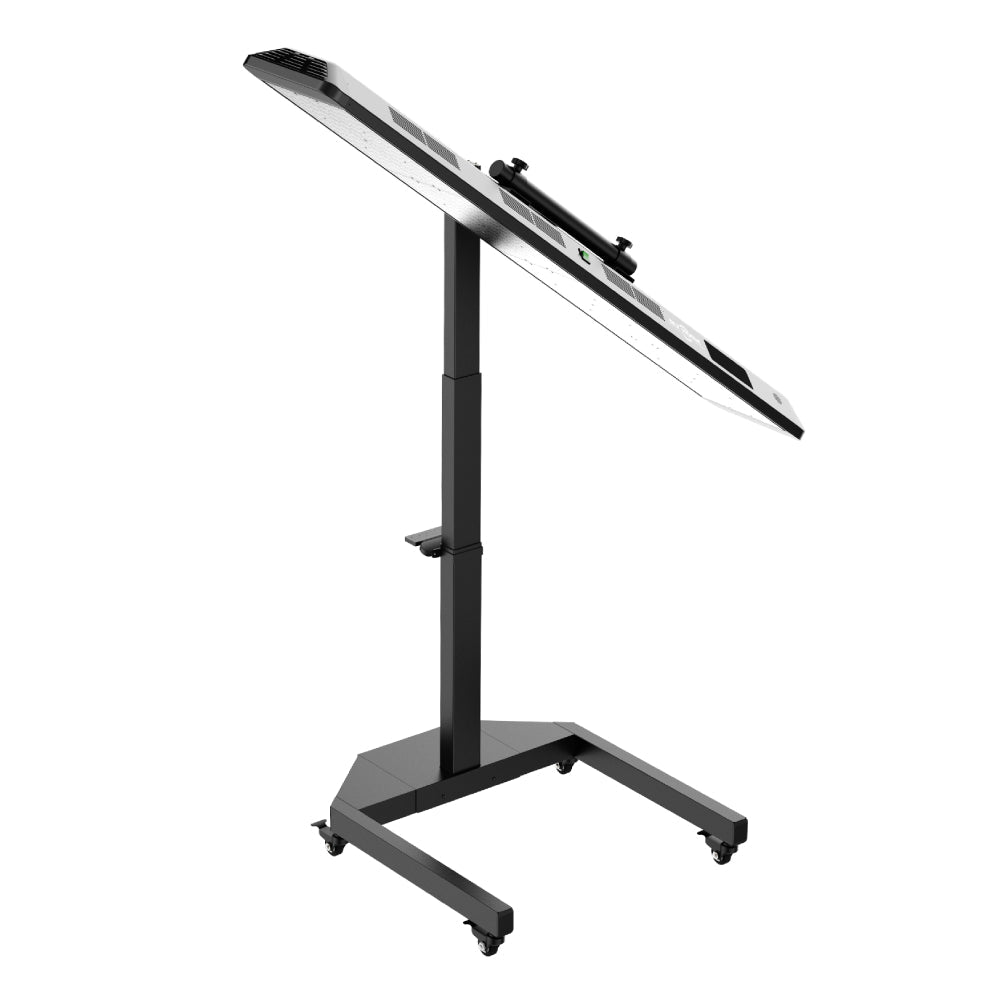

Adjustable Electric Stand

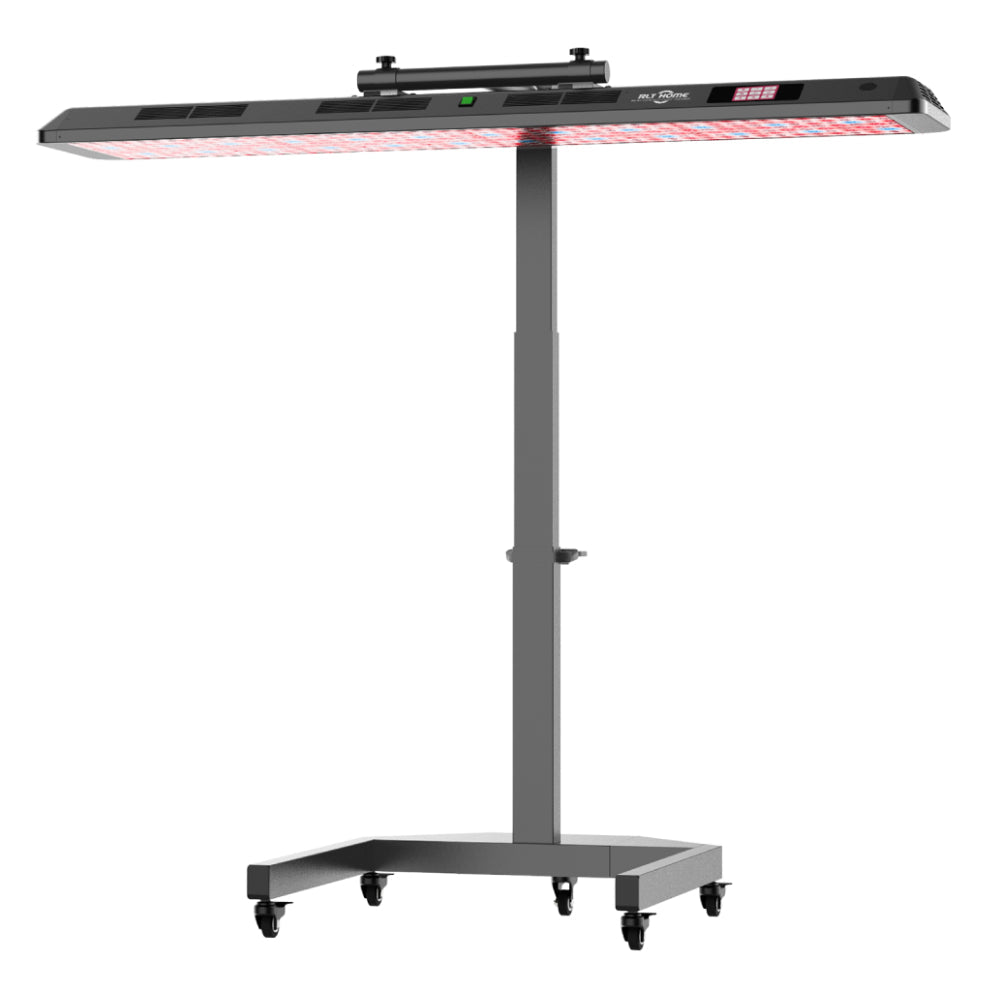

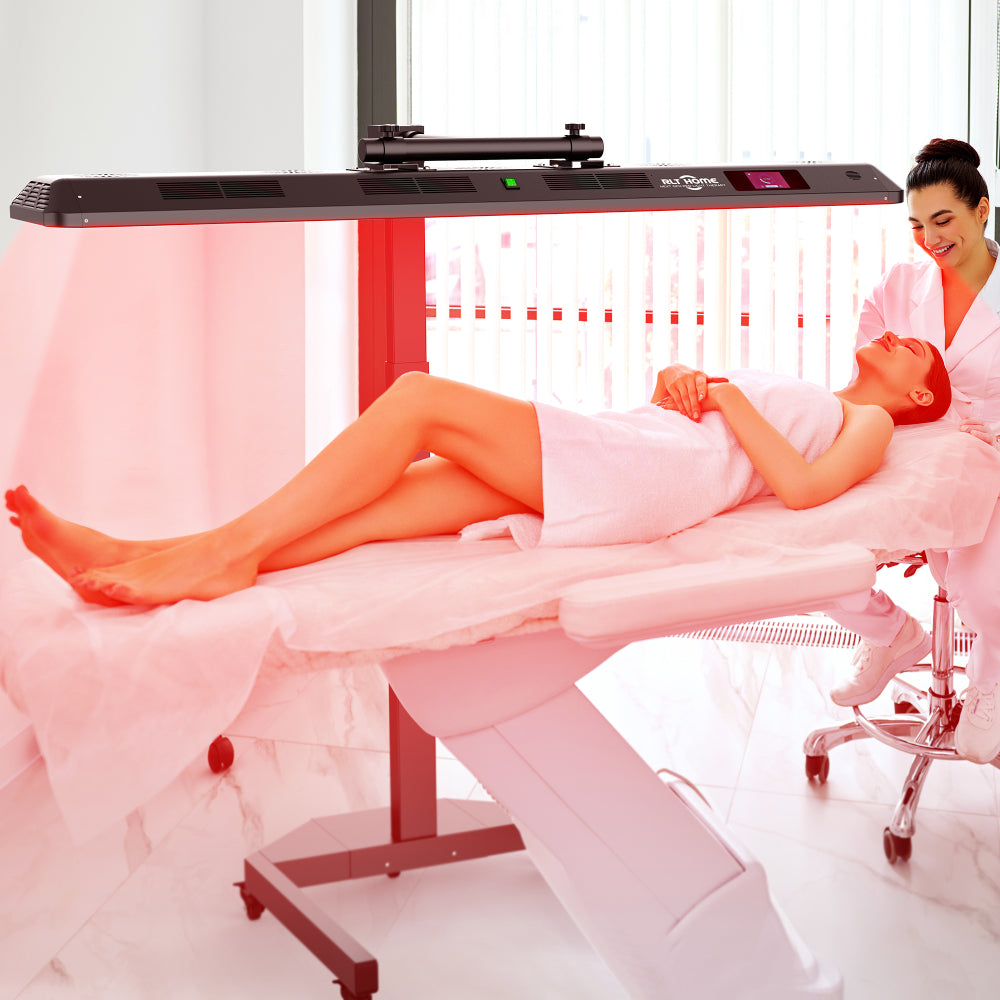

An adjustable electric stand is included with the ULTRA, allowing the panel to be positioned for standing, seated, or horizontal session arrangements.

The installed stand adjusts from approximately 29 inches to 64 inches in height and occupies a footprint of approximately 3 × 3 feet.

Clearance beneath a bed or massage table is approximately 5.5 inches with wheels or 3 inches without wheels.

Low-Flicker & EMF Measurements

According to manufacturer testing, the ULTRA is designed for flicker-free operation.

Manufacturer measurements report approximately 0.0 μT EMF at distances of 6 inches or greater when measured with a Cornet EMF device.

Measurement results may vary depending on equipment, environment, distance, and operating conditions.

Why Choose the Total Spectrum ULTRA?

Choose the Total Spectrum ULTRA if you want a large-format seven-wavelength system with a narrower profile than the ELITE.

Its combination of 480 LEDs, seven wavelengths, three beam angles, programmable modes, adjustable pulsing, individual channel controls, touch and voice operation, Bluetooth audio, and an electric positioning stand provides substantial configuration flexibility in one integrated system.

For shoppers who want a wider panel with 864 LEDs, the larger Total Spectrum ELITE may be the better fit. The ULTRA is designed for those who prefer the seven-wavelength platform in a narrower 11.8-inch-wide configuration.

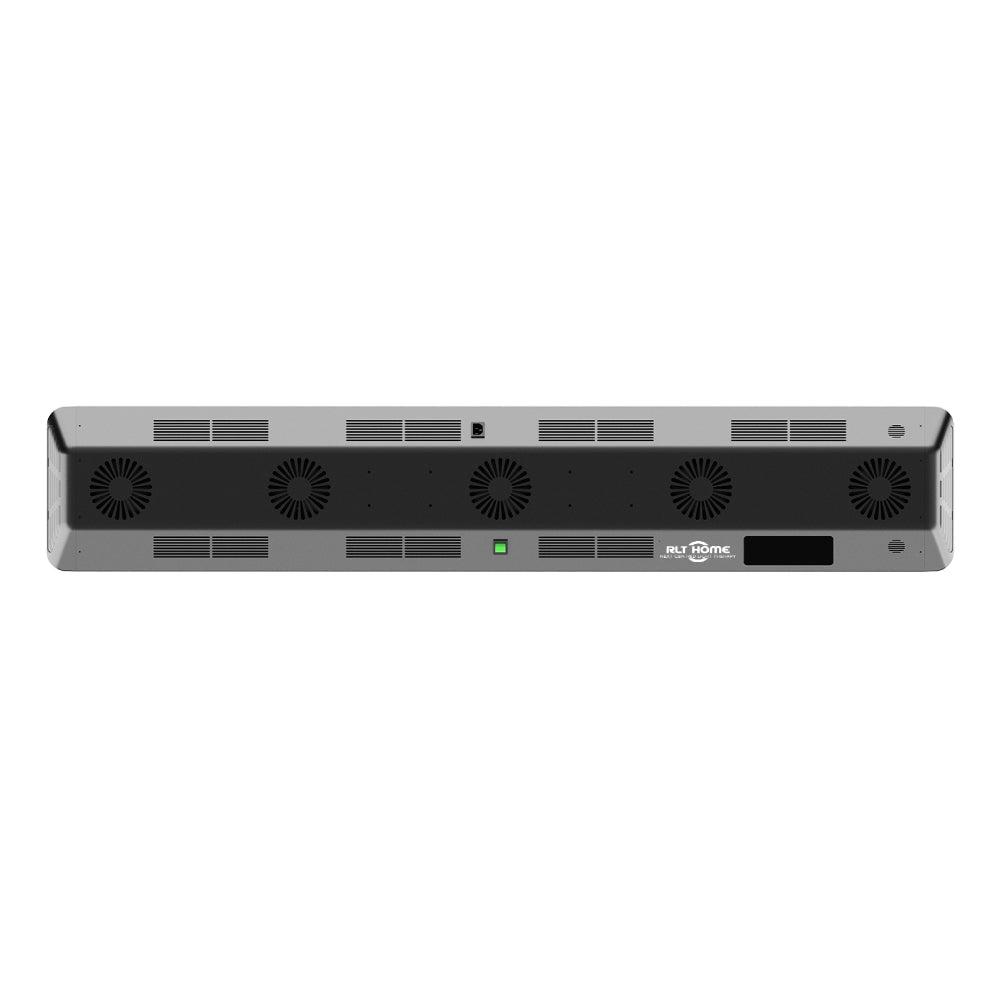

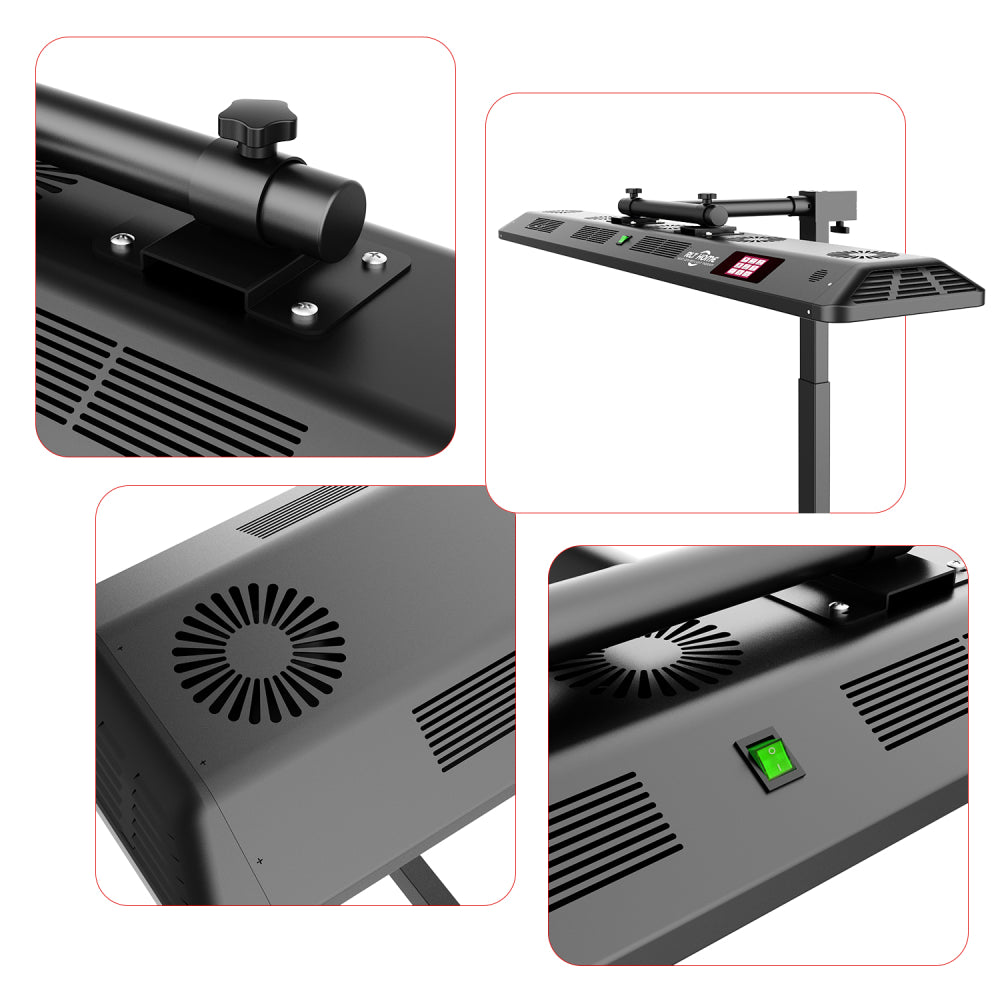

Controls & Design

• Controls: Touch and voice operation
• Audio: Bluetooth connectivity
• Beam Angles: 15° / 30° / 60°
• LED Lifespan: Rated up to 100,000 hours
• Input Voltage: AC 100–240V
• Housing: Iron

Compliance & Certifications

Manufacturer documentation identifies RoHS and CE certifications for applicable product configurations.

RoHS relates to restrictions on specified hazardous substances in electrical and electronic equipment. CE documentation supplied by the manufacturer addresses applicable European electrical-safety and electromagnetic-compatibility requirements.

Certification applicability should be confirmed for the specific product configuration and destination market.

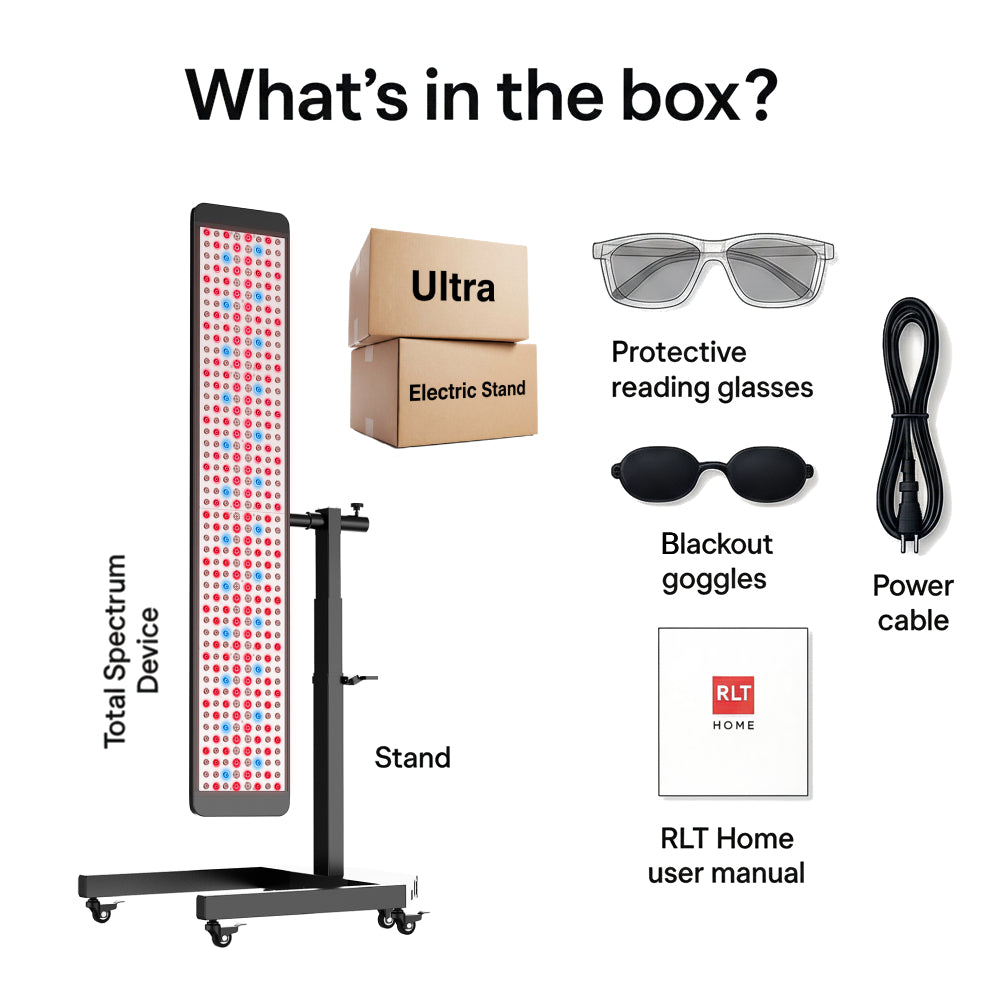

What's Included

• Total Spectrum ULTRA Device
• Adjustable Electric Stand
• Protective Reading Glasses
• Blackout Goggles
• RLT Home User Manual
• Power Cable

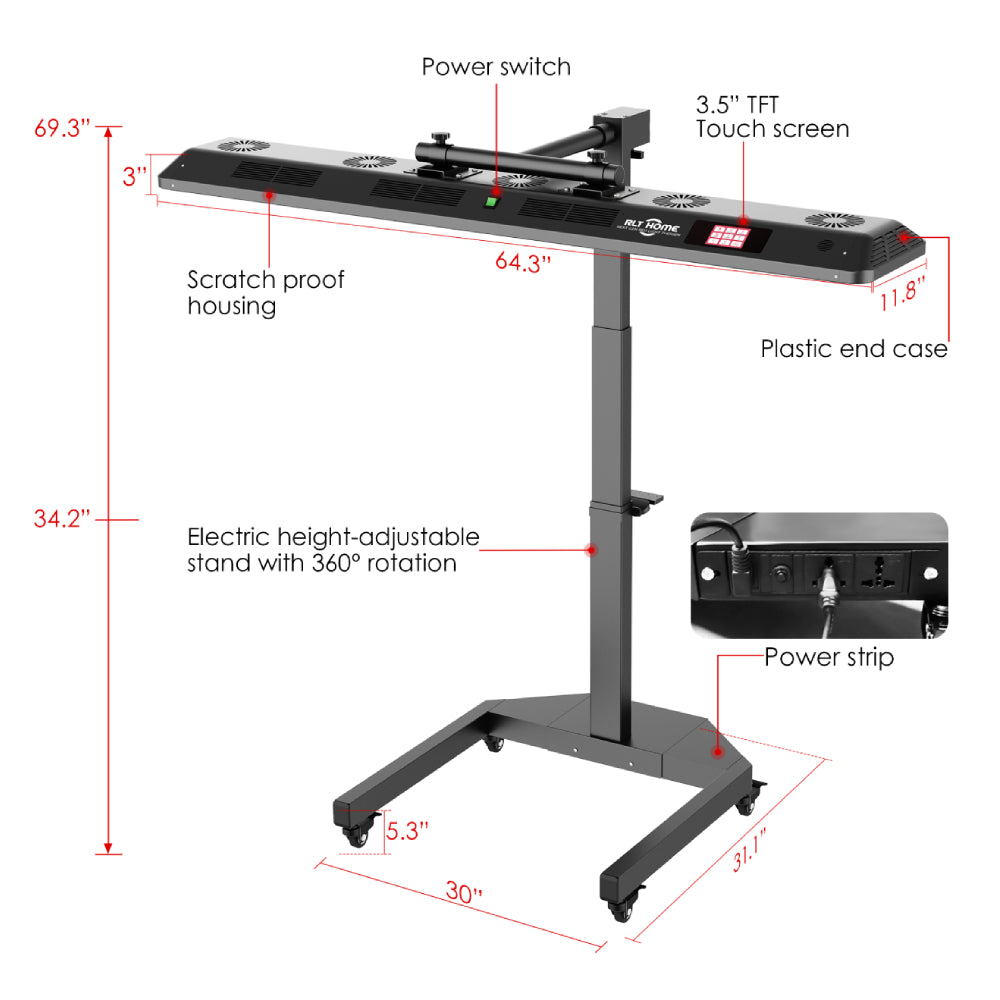

Dimensions & Weight

ULTRA Device

• Dimensions: 64.3 × 11.8 × 3 in
• Weight: 39.6 lb
• Shipping Dimensions: 71 × 15 × 6 in
• Shipping Weight: 51.5 lb

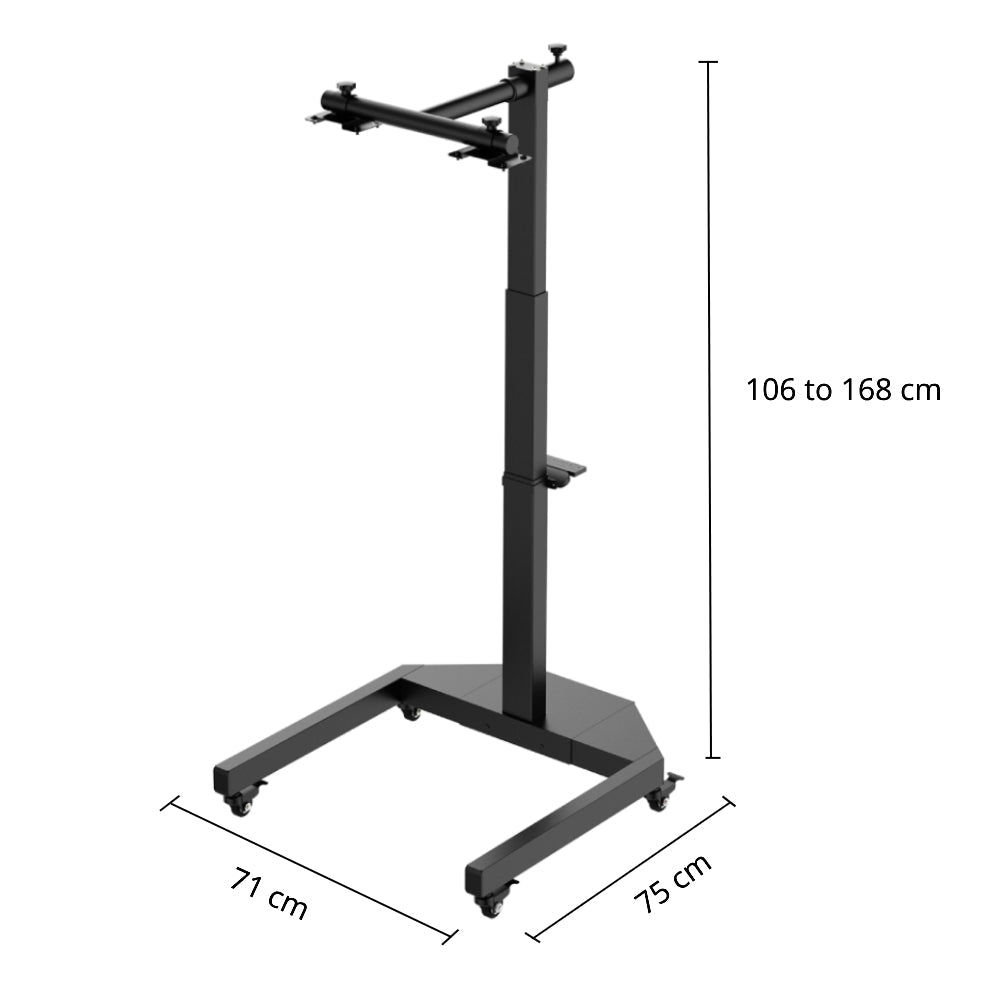

Electric Stand

• Dimensions: 33 × 28 × 5 in
• Weight: 53 lb
• Shipping Dimensions: 33 × 29 × 6 in
• Shipping Weight: 61.3 lb
• Installed Footprint: Approximately 3 × 3 ft
• Installed Height Range: Approximately 29–64 in
• Under-Bed/Table Clearance: 5.5 in with wheels / 3 in without wheels

Shipping

The ULTRA device and adjustable electric stand ship separately and may arrive in separate packages.

Confirm that the intended installation area provides sufficient space for the approximately 3 × 3 ft stand footprint and the selected operating position.
